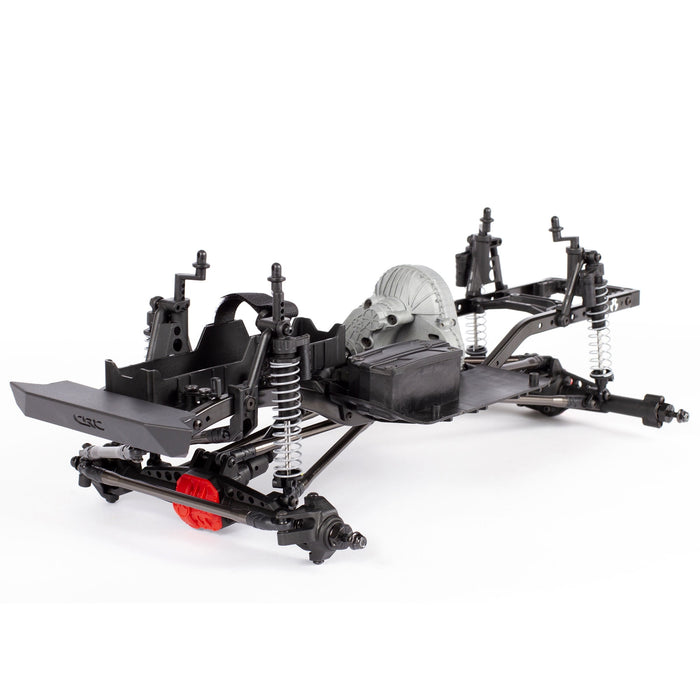

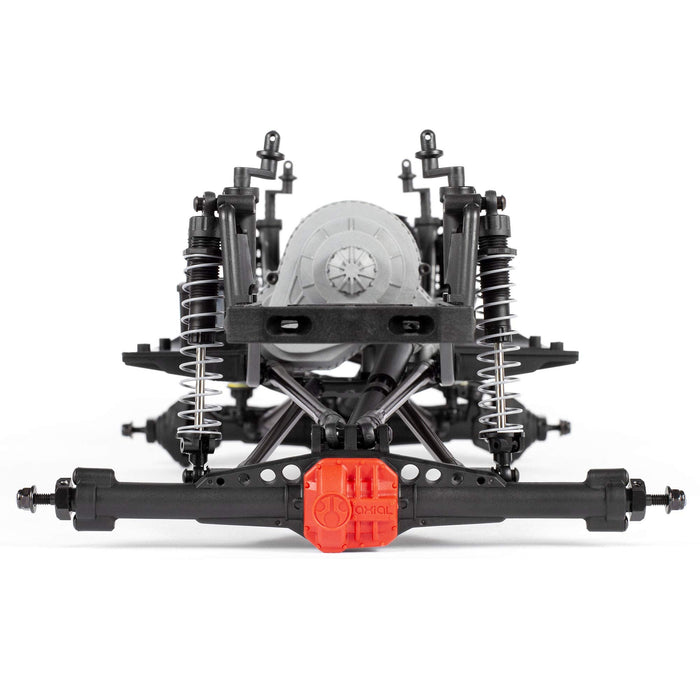

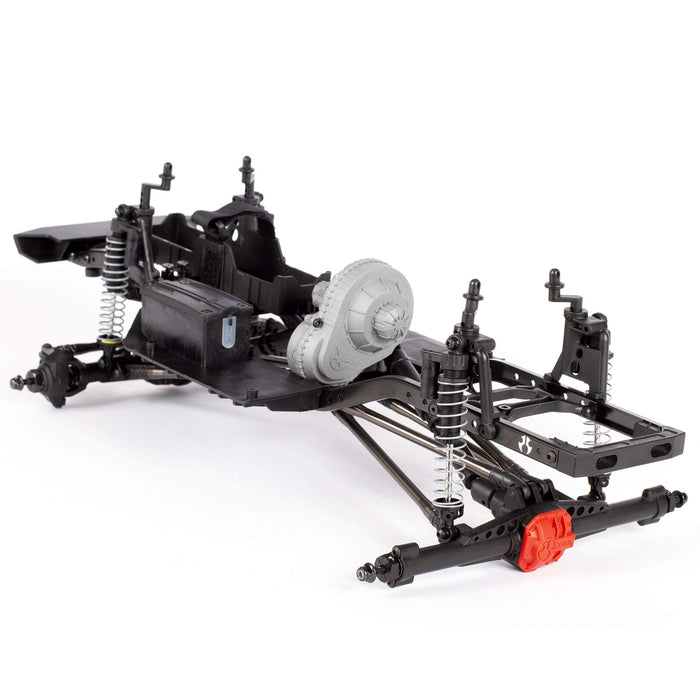

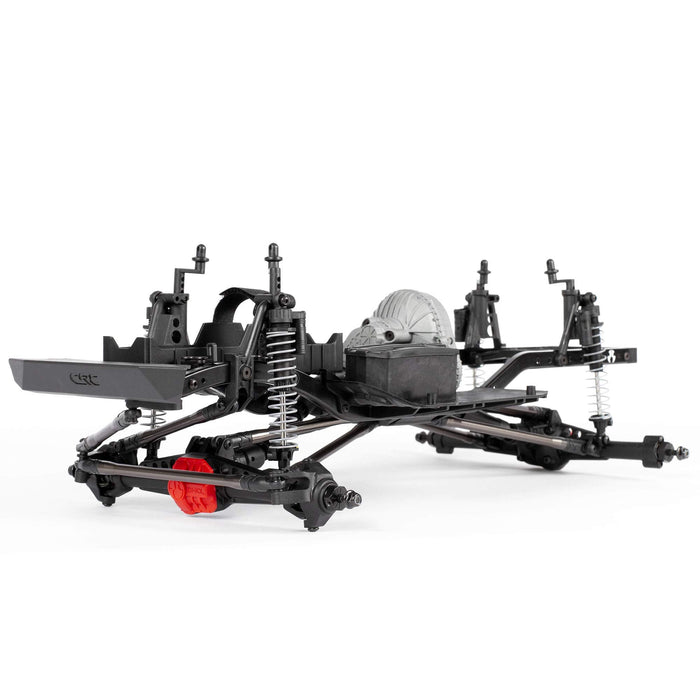

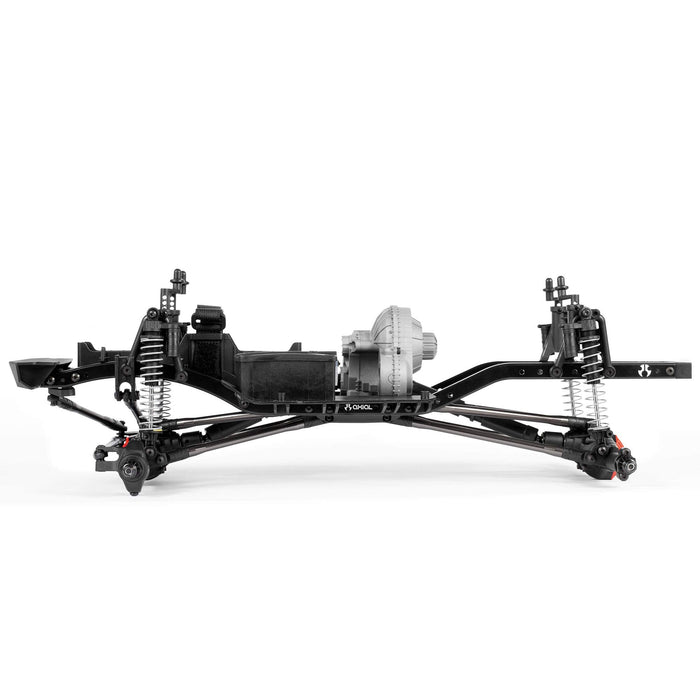

AXIAL 1/10 SCX10 II 4WD Raw Builders Kit V2 - AXI90104V2

by Axial
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU AXIA_AXI90104V2
Sold out
Original price $0.00 - Original price $0.00
Original price
$239.99
$239.99 - $239.99
Current price $239.99

Overview

Start with your favorite scale trail chassis — the Axial® SCX10™ II. Top it off with electronics and your choice of body, tires, and wheels. Now you’ve got a custom rig with proven performance and a look that’s all yours: the Axial SCX10 II Raw Builder’s Kit!

Description

In 2008 Axial introduced its first SCX10 as a builder’s kit that avoided the technical hurdles of scratch-building. Scale trail enthusiasts could focus their attention on other things, like visually personalizing their rig. The SCX10 chassis platform proved to be a highly effective driving machine. Standout features included an all-metal twin C-channel frame, solid transmission, and axles with realism and capabilities to match.

With the SCX10 II, Axial kept the essence of the SCX10 and its metal frame rail chassis, but added scale AR44™ high pinion axles, a chassis-mounted servo, redesigned transmission, front mounted battery tray, all aluminum suspension links, suspension designed for nearly zero bump steer, and more.

These are some of the features that make the SCX10 II optimized for performance. Now, with the Raw Builder’s Kit version, you can drive a machine that’s as personal as it is capable!

In The Box
  • (1) Axial SCX10 II Raw Builders Kit
  • (1) User Manual
Needed to Complete
  • 1/10 Body, Tires, and Wheels
  • Motor, Steering Servo, ESC, and Radio System
  • (1) 2S LiPo Battery OR (1) 6S NiMH Battery
  • (1) Compatible LiPo Charger
  • (4) AA Batteries

AR44™ Single Piece Axles
  • Single piece axle housing for strength.
  • Small pumpkin for increased clearance and scale realism.
  • Optimized gear ratio (3.75) for reduced torque twist.
  • High pinion gears for added ground clearance, better driveshaft angles, and increased durability.
AR44™ Single Piece Axles
AX10™ Transmission
  • Scale looks on the outside — strong, all-metal Axial® gears on the inside!
  • Mimics a real transmission with bell housing, oil pan, and 4X4 transfer case.
  • 56T spur gear and 15T pinion — 32-pitch for durability.
  • Final drive ratio (FDR) 40.44 with a range from 33.69 - 54.15.
  • Efficient driveline with improved driveshaft angles to reduce stress on moving parts.
  • Includes a full set of ball bearings.
AX10™ Transmission
AR44™ Universal Axle Set
  • Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.
  • Hardened steel construction.

AR44™ Universal Axle Set

All Aluminum Suspension Links



  • All links are metal, including the steering.
  • 4-Link rear suspension geometry reduces axle steer and torque twist.
  • Custom tapered center – flared ends design.
  • Large M4 rod ends.
  • Gray anodized aluminum.

CMS (Chassis Mounted Servo)

CMS (Chassis Mounted Servo)
  • Servo is moved from the top of the axle onto the chassis, just as a full-size truck's steering box is located on the frame.
  • Enhances scale looks with proper suspension geometry.
  • Anodized aluminum links included with M4 rod ends.
  • Adjustable servo mounting system allows a wide range of servos to be used.
  • Properly designed suspension for nearly zero bump steer.



Product specs

Power Type Electric
Servos Sold Separately
Battery Sold Separately
Ground Clearance 3.0 in (77mm)
Product Length 19.25" (489 mm)
Suspension Solid Axle
Product Weight 4.0 lb (1.81kg)
Vehicle Type Rock Crawler
Charger Sold Separately
Differential Bevel Gear 30T/8T
Receiver Sold Separately
Shock Type Coil-Over 2.4 - 3.5 in (61-90mm)
Speed Control Sold Separately
Wheelbase 11.4" (290 mm)
Radio Sold Separately
Product Width 8.9" (226 mm)
Approximate Assembly Time 5-7 Hours
Body Sold Separately
Scale 1/10
Product Height 9.4" (239 mm)
Completion Level Kit
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Chassis SCX10, C-Channel Steel
