BDS BDS1906H 3.5 Inch Lift Kit Ford Ranger (19-23) 4WD

BDS BDS1906H 3.5 Inch Lift Kit Ford Ranger (19-23) 4WD

by BDS SUSPENSION
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU BDSS_BDS1906H
Sold out
$0.00 - $0.00
$1,184.89
$1,184.89 - $1,184.89
$1,184.89
Availability:
Out of stock
Request a quote

Product Tags:

BDS

BDS BDS1906H 3.5 Inch Lift Kit - Ford Ranger (19-23) 4WD

2020-23 Ford Ranger 3.5in. Suspension Lift Kit - NX2

Easy 100% Bolt-on installation; BDS Suspension offers a huge assortment of truck, SUV and Jeep lift kits and truck accessories; Maintains factory like ride quality; Standard NX2 Nitro shocks with vehicle-specific valving for better control; Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

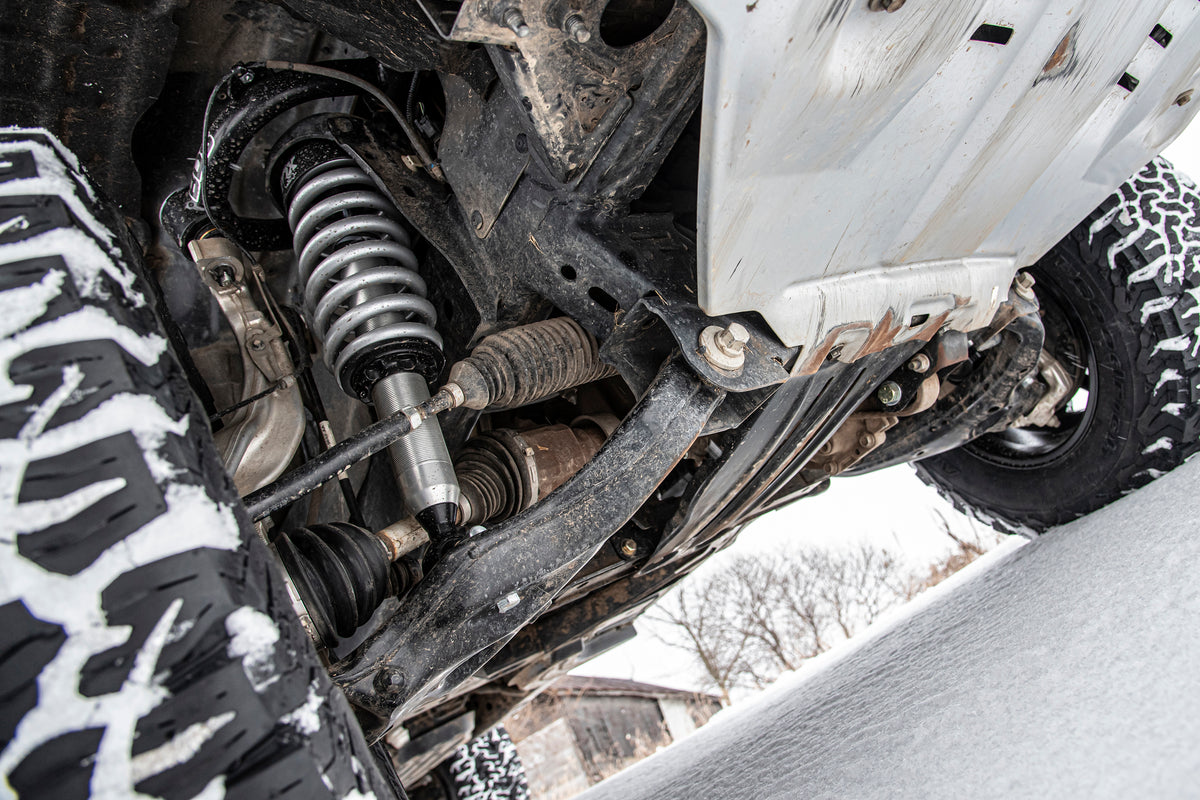

Improve the performance and style of your 2019-2023 Ford Ranger truck by installing this 3.5-inch lift kit from BDS. Specially designed for the new Ranger this 3.5" leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.; To prevent maxing out ball joints or CV damage BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer. To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel.; Up front the lift kit includes steel top mount strut spacers pre-load spacers differential relocation brackets and tubular upper control arms. In the rear this kit includes heavy duty lift shackles and custom-tuned NX2 Nitro or FOX Performance series shocks.; HD Upper Control Arms (UCAs); Built for strength performance and increased travel these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

  • UPC: 00840416410594
  • Installation Difficulty: moderate
  • Installation Time: 4 h
  • Front Lift Height: 3_5 in
  • Rear Lift Height: 1 in
  • Front Lift Method: Strut Spacer
  • Rear Lift Method: Shackle

  Warranty

All JKS products are protected by a limited lifetime warranty to ensure they are free from manufacturer defects in material and workmanship so you can go with confidence knowing your JKS parts are covered.
