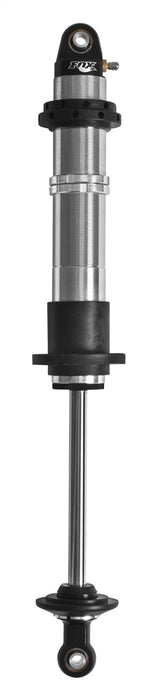

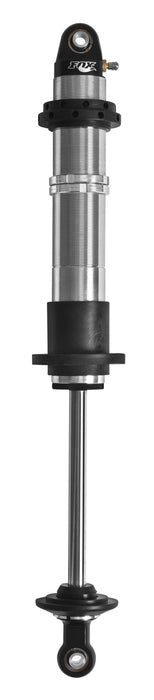

Factory Race 2.5 X 12.0 Coil Over Emulsion Shock - 980-02-249
Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.
Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.
|Body||Smoothbore and honed seamless steel|
|Body Plating||Zinc plated for a long-lasting finish|
|Components||Black anodized, CNC machined 6061-T6 billet aluminum|
|Piston||7075 hard-anodized high-flow aluminum piston*|
|Valving||Tunable, velocity-sensitive deburred valve shims|
|Seals||High-temp Vitonu00ae redundant sealing pack system with a main seal, wiper seal, and scraper seal*|
|Oil||JM92 Advanced Suspension Fluid for improved performance at variable temperatures|
|Shafts||1" 17-4 H900 hard chrome-plated stainless steel|
|Bearing||Spherical, PFTE-lined, heat-treated alloy steel|
|Options||Custom compression and rebound valving available (Add -1 to end of part number)|
|Adjustments||Spring preload ring|
|Dual-stage crossover ring|
|Mounting||1/2 x 1.50|
LENGTH 42.62 in.
WIDTH 12.75 in.
HEIGHT 11.62 in.
WEIGHT 18.00 lbs.
DIM WEIGHT 28 lbs
