Spektrum SMART FIRMA 150A BL Smart ESC/2050Kv Sensorless MotCombo SPMXSEMC05 Car Speed Controls & Accessories

Spektrum SMART FIRMA 150A BL Smart ESC/2050Kv Sensorless MotCombo SPMXSEMC05 Car Speed Controls & Accessories

by SPEKTRUM
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU SPEK_SPMXSEMC05
Sold out
$0.00 - $0.00
$182.50
$182.50 - $182.50
$182.50
Availability:
Out of stock
Request a quote

Product Tags: 605482692417 74312 b08bbxdvjk remote-control-accessories remote-control-cars-trucks-accessories remote-control-parts spektrum spektrum-rc-firma-150-amp-sensorless-brushless-fits-smart-esc-motor-combo-2050kv-spmxsemc05 spmxsemc05

>

Product Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming:
    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrumâ„¢ engineers, in partnership with the industry's leading ESC manufacturer

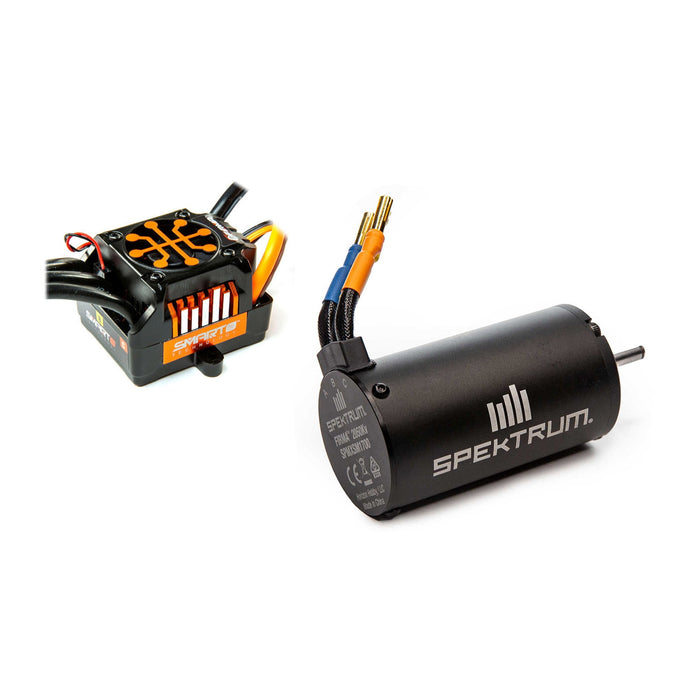

  • Comes bundled with Spektrum Firma 2050Kv Brushless Motor
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant ICâ„¢ connectors, backwards compatible with ECâ„¢ connectors
  • Limited 1-year warranty

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

This ESC comes bundled with a Spektrum Firma 2050Kv Brushless Motor capable of handling everything this ESC can put out that is a perfect to get you driving with Spektrum Smart technology.

Needed to Complete
  • Spektrumâ„¢ Surface Receiver
  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter
What's in the Box?
  • (1) Spektrumâ„¢ Firmaâ„¢ Smart ESC
  • (1) Spektrumâ„¢ Firmaâ„¢ 2050Kv Brushless Motor
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual

Video Overview



WATERPROOF

WATERPROOF

The all-weather, waterproof design of Spektrumâ„¢ Firmaâ„¢ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.



EC3â„¢/EC5â„¢ BACKWARDS COMPATIBLE

EC3â„¢/EC5â„¢ BACKWARDS COMPATIBLE

Firmaâ„¢ ESCs feature ICâ„¢ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3â„¢ or IC5â„¢ connector-equipped Spektrumâ„¢ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

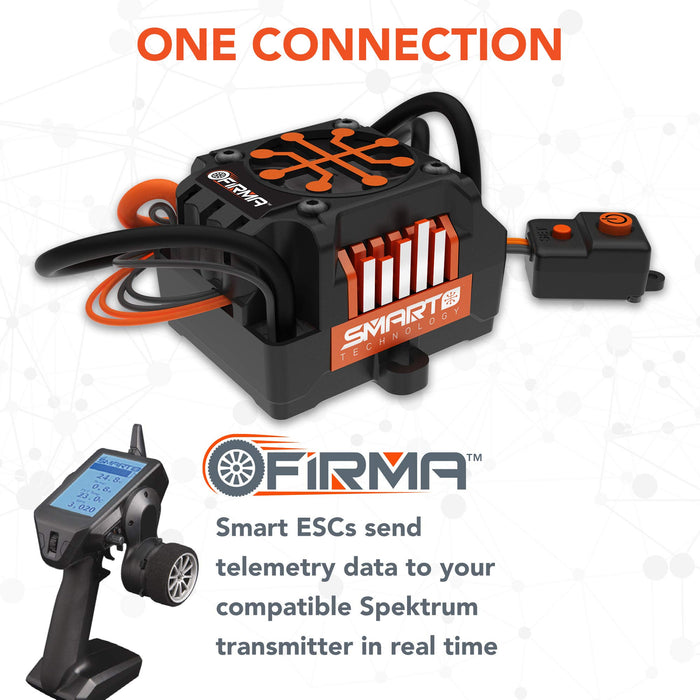

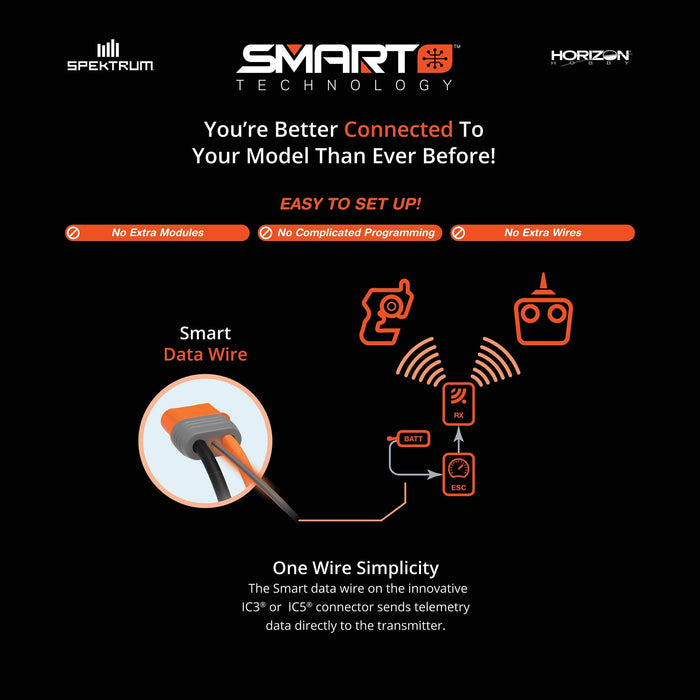

ONE-WIRE TELEMETRY
ONE-WIRE TELEMETRY

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firmaâ„¢ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.*

*See compatibility chart for more information.



SMART TECHNOLOGY BATTERY DATA

SMART TECHNOLOGY BATTERY DATA

When used with a Spektrumâ„¢ Smart LiPo battery, your Firmaâ„¢ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!



MULTIPLE PROGRAMMING OPTIONS

MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firmaâ„¢ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.




FAST, POWERFUL M4 PROCESSOR

FAST, POWERFUL M4 PROCESSOR

The Firmaâ„¢ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.



Product Specifications

Auto Cutoff Yes
Battery Input Lead IC5, EC5 compatible
BEC Yes
BEC Continous Current 5A
BEC Type Linear
BEC Voltage 6V
Brakes Yes
Connector Type IC5
Forward Yes
Input Voltage 3S - 6LiPo
Low-Voltage Cutoff Programmable Yes
Maximum Burst Current 950A
Maximum Continuous Current 150A
Motor Output Lead 5.9" (150mm) 10AWG
Motor Type Brushless
Outer Diameter 1.57" (40 mm)
Output 3000W
Overload Protection Yes
Product Height 1.5" (38.5mm), ESC
Product Length 2.3" (58mm), ESC
Product Weight 8.4oz (238g), ESC
Product Width 1.9" (47.5mm) without tabs, 2.3" (59.5mm) with tabs, ESC
Programmable Yes
Reverse Yes
RPM/Volt (Kv) 2050Kv
Shaft Diameter 0.197" (5 mm)
Technology Smart
