WARN Zeon 10-S Winch 89611

WARN Zeon 10-S Winch 89611

by WARN
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU BCSQ_89611
Sold out
$0.00 - $0.00
$1,609.48
$1,609.48 - $1,609.48
$1,609.48
Availability:
Out of stock
Request a quote

Product Tags: 00012748896111 89611 motor-vehicle-towing towing warn warn-winch-vehicle-mounted-vehicle-recovery-winch-12-volt-electric-10000-pound-line-pull-capacity-100-foot-synthetic-rope-hawse-fairlead-wired-remote-convertible-control-pack-planetary-gear-drive-requires-winch-carrier-or-winch-mount-89611 winch winches zeon zeon-winch

Description

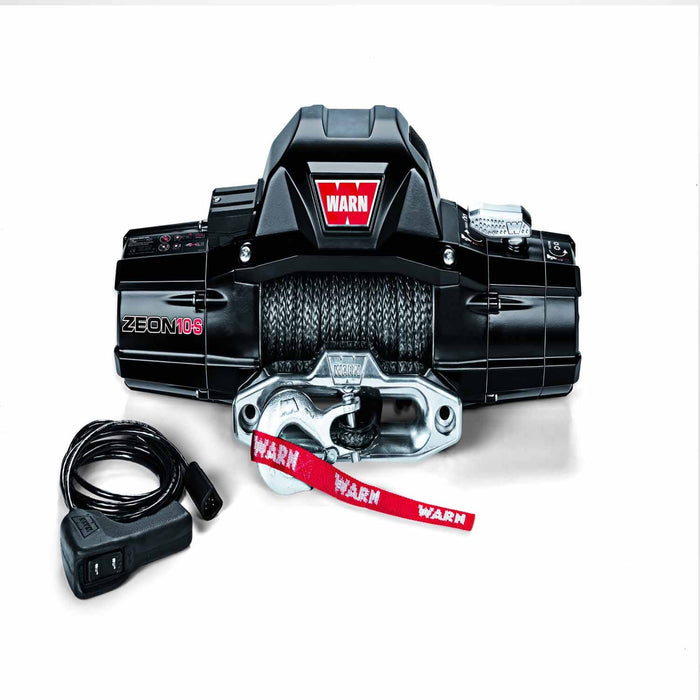

>This Warn Industries ZEON (R) 10-S 12 volts electric Winch is vehicle mounted and has a pull capacity of 10,000 pounds. It has a 100 feet synthetic rope. Note: This Winch will require a winch mount for proper installation.

Video


Overview

Choose your way to conquer the terrain. The ZEON 10-S is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 Pound single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

  • 10,000 Pound (4536 Kilogram) Single-Line Pulling Capacity
  • Includes 100 Foot Of 3/8 Inch Warn Spydura Synthetic Rope, Which Includes A Temperature-Resistant Sleeve On The First Layer, A Ballistic Nylon Sliding Sleeve And A Polished Aluminum Hawse Fairlead
  • Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
  • New-Design Planetary Gear Train And Series-Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power
  • Satin-Black Powder-Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion. Improved Winch Sealing To Keep The Elements Out
  • Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Specs
TYPE Electric
MOUNT TYPE Vehicle Mounted
RECOMMENDED USE Vehicle Recovery
VOLTAGE 12 Volt
ELECTRICAL CONTROL TYPE Contactors
MOTOR TYPE Series Wound
THERMAL SHUTOFF No
DRIVE GEAR TYPE Planetary
GEAR REDUCTION RATIO 216:1
FREE SPOOLING Yes
BRAKE TYPE Mechanical Cone
LINE DIAMETER (IN) 3/8 Inch
LINE LENGTH (FT) 100 Feet
LINE MATERIAL Synthetic
FAIRLEAD TYPE Hawse
CONFORMS TO J706 STANDARDS No
REMOTE TYPE Handheld Remote Switch
MOUNTING HOLE QUANTITY 4
OPERATION TYPE Automatic
MOUNTING PATTERN LENGTH (IN) 10 Inch
MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
INCLUDES MOUNTING HARDWARE No
COLOR Black
MAX AMP DRAW/ LINE PULL 409 Amp Draw/ 10000 Pound
MAX LINE PULL/ LINE SPEED 10000 Pound/ 4.8 Feet Per Minute
