2023-2025 Ford F250/F350 4wd 5" Radius Arm Suspension Lift Kit, 3" Rear, Block, Diesel - NX2 shocks - w/o Overload Springs

2023-2025 Ford F250/F350 4wd 5" Radius Arm Suspension Lift Kit, 3" Rear, Block, Diesel - NX2 shocks - w/o Overload Springs

by BDS Suspension
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU BDSS_BDS2242H
Sold out
$0.00 - $0.00
$1,542.23
$1,542.23 - $1,542.23
$1,542.23
Availability:
Out of stock
Request a quote

Product Tags:

OVERVIEW

Improve the ride on your 23-25 Ford Super Duty diesel truck with this 5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

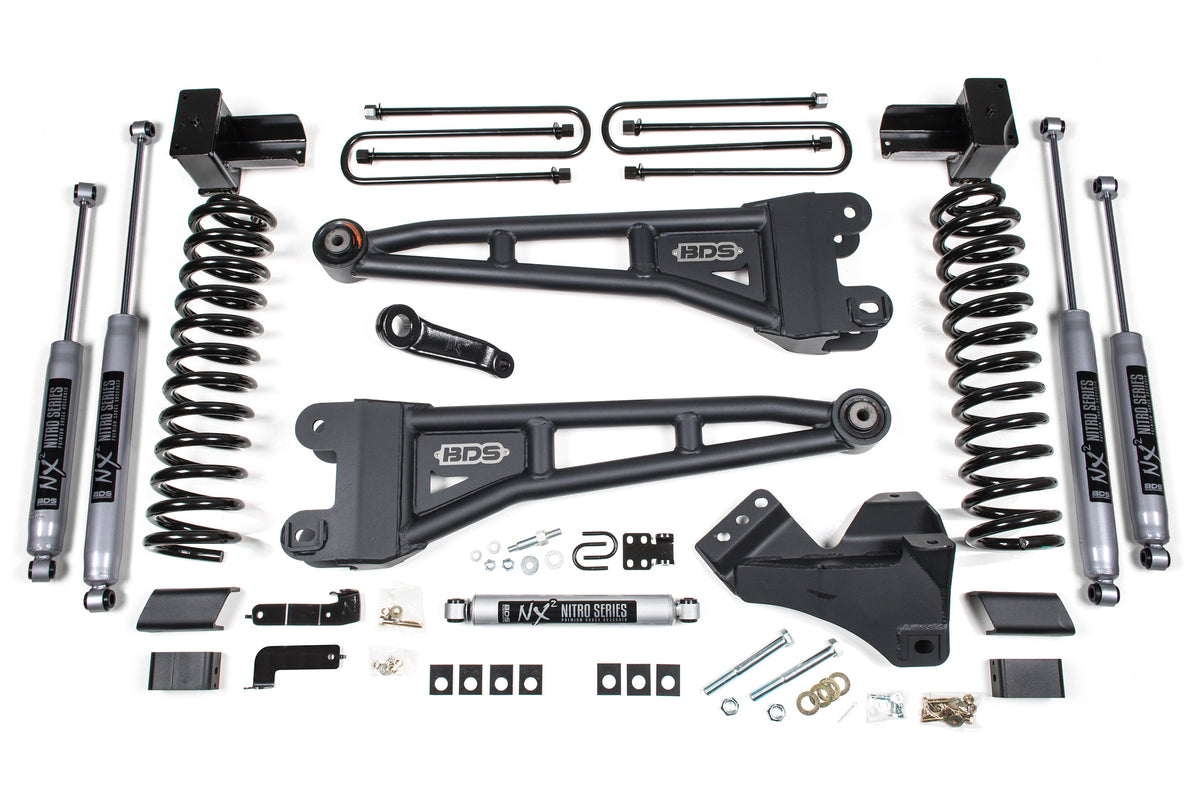

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.



HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

Rear Lift Option

5 Inch Block

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Leaf Springs

  • Reduces axle wrap and creates a more controlled and stable feel
  • Multi-leaf progressive design for smooth ride
  • Maintains factory payload weight ratings
  • Anti-friction pads provide a smooth and quiet ride
