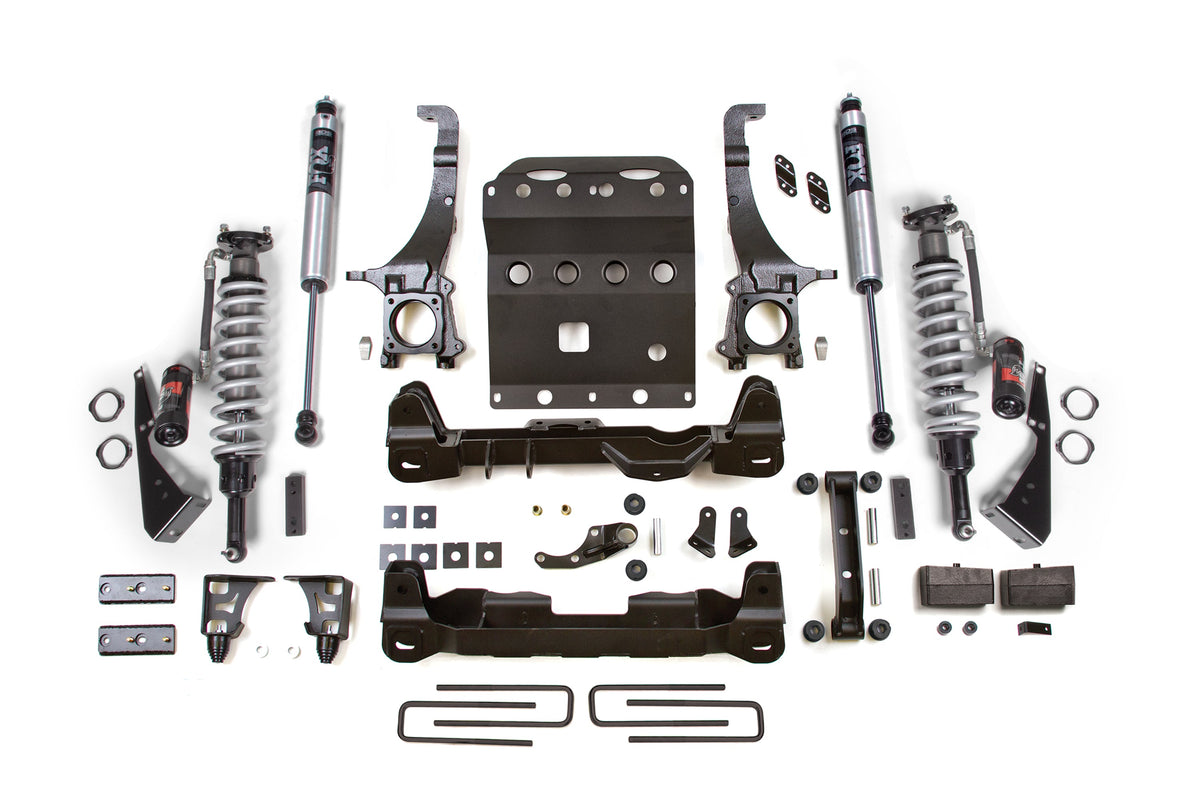

2005-2015 Toyota Tacoma 4wd 4" Suspension Lift Kit, 4" Rear, Block - 2.5 PES C/O, 2.0 PS

2005-2015 Toyota Tacoma 4wd 4" Suspension Lift Kit, 4" Rear, Block - 2.5 PES C/O, 2.0 PS

by BDS Suspension
In Stock - Usually Ships in 1-3 Days (1 In Stock)
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU BDSS_BDS816PSS
$0.00 - $0.00
$4,019.94
$4,019.94 - $4,019.94
$4,019.94
Availability:
Low stock
Request a quote

Product Tags:

OVERVIEW

Get the ultimate look and performance for your Toyota Tacoma with the BDS 4-inch suspension lift kit featuring FOX 2.5 Performance Elite (PE) coil-overs and shocks. These kits feature the new aluminum-bodied FOX 2.5 Performance Elite (PE) coil-over shocks designed specifically to bolt-on performance for increased travel, more adjactability via DSC adjustment, and better heat dispersion allowing you to soak up the roughest terrain on and off-road. Designed to improve stance, performance, and capability, BDS includes everything necessary to set your truck up right with clearance for up to 33" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, this kit pairs the FOX 2.5 PE Coil-Overs with high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, FOX reservoir mounts and supplied hardware packs provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts to lift and level the stance without effecting load capacity. For shocks you have the option of FOX 2.0 IFP performance series gas shocks or upgrade to the FOX 2.5 Performance Elite (PE) series remote reservoir shocks to match the front and further enhance vehicle performance and adjustability.

FOX 2.5 PE Coil-Overs

FOX 2.5 Performance Elite (PE) coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these aluminum bodied FOX 2.5-inch diameter coil-overs are the latest iteration of FOX suspension technology built for abuse. Lighter design, better heat dispersion, and race-proven components for the best all around product. These include DSC (Dual Speed Compression) adjusters on the remote reservoir for additional fluid capacity and high-speed/low-speed compression tuning to easily dial in performance to match any terrain with the turn of the knobs.

HD Components

All BDS kits come with a No Fine Print Warranty and to ensure our kits are the best they can be we use high-strength American steel, high clearance and fully welded crossmembers, the latest manufacturing processes and quality inspection every step of the way. Get the most out of your truck with BDS Suspension and FOX.

Features & Benefits

  • FOX 2.5 Performance Elite series coilovers and choice of FOX 2.0 or 2.5 (PE) rear shocks for improved ride quality, performance, and capability
  • High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 4.5 in. Backspace

Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

IMPORTANT NOTES
  1. Will not work on TRD Pro Models
  2. Minor welding required
  3. Requires frame bracket modification
  4. Stock wheels cannot be reinstalled
  5. System will work on 2WD Pre-Runner models
  6. Kit requires 18" or larger wheels, 17" wheels cannot be used.

INSTALLATION

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

SPECIFICATION
  • Front Lift Method : Coil-Over
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 4"
  • Shocks Included : No
  • Lift Height : 4-5.5"

FITMENT
Year Make Model Submodel Drive Type Fuel Type Position Lift Height
2005 Toyota Tacoma Base 4WD ALL
2006 Toyota Tacoma Base 4WD ALL
2007 Toyota Tacoma Base 4WD ALL
2008 Toyota Tacoma Base 4WD ALL
2009 Toyota Tacoma Base 4WD ALL
2010 Toyota Tacoma TRD Sport 4WD ALL
2010 Toyota Tacoma Base 4WD ALL
2011 Toyota Tacoma Base 4WD ALL
2011 Toyota Tacoma TRD Sport 4WD ALL
2012 Toyota Tacoma Base 4WD ALL
2012 Toyota Tacoma TRD Sport 4WD ALL
2013 Toyota Tacoma Base 4WD ALL
2013 Toyota Tacoma TRD Sport 4WD ALL
2014 Toyota Tacoma Base 4WD ALL
2014 Toyota Tacoma TRD Sport 4WD ALL
2015 Toyota Tacoma Pre Runner RWD ALL
2015 Toyota Tacoma Base 4WD ALL
2015 Toyota Tacoma TRD Sport ALL ALL
