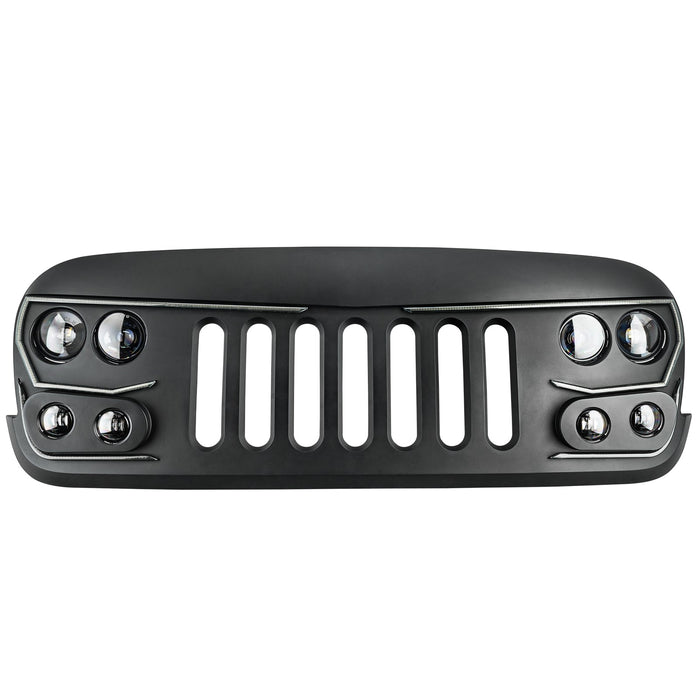

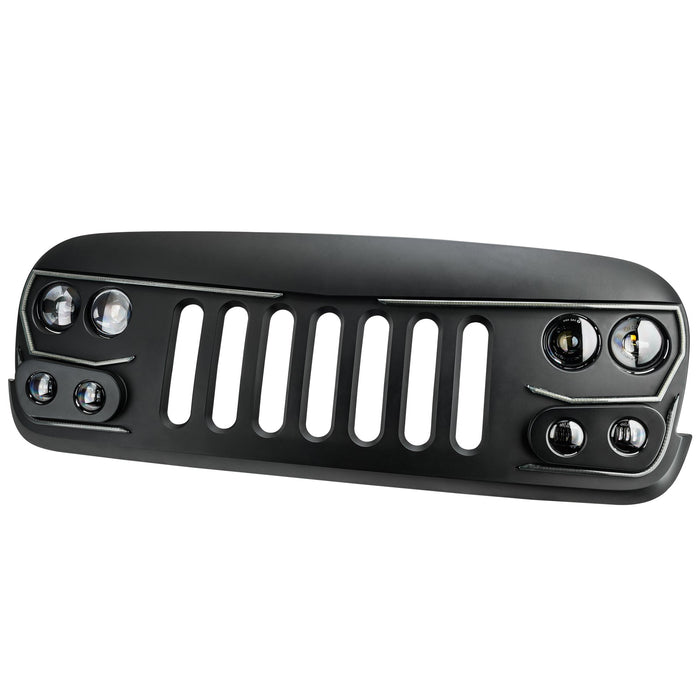

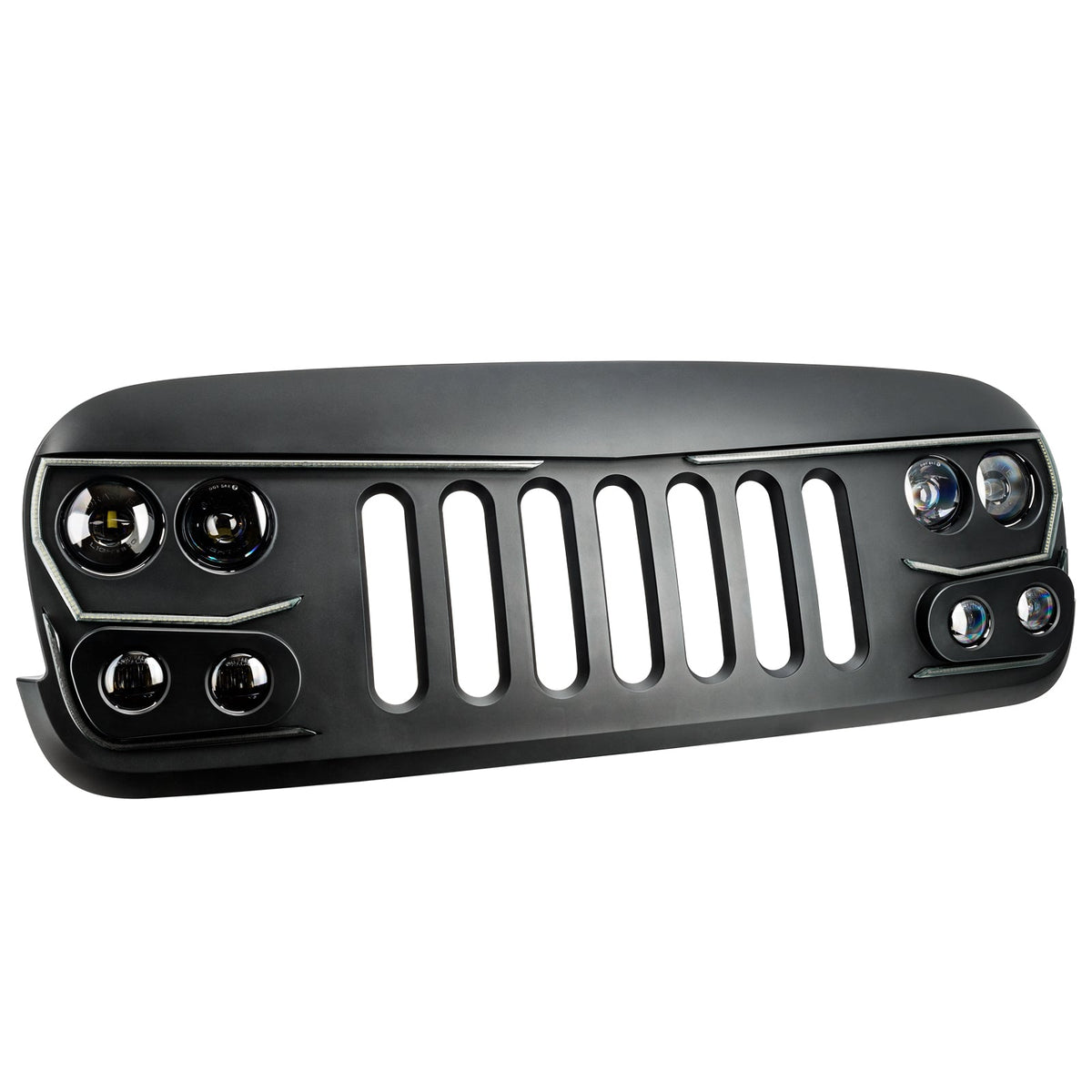

5817-504 - ORACLE Lighting VECTOR Series Full LED Grill- Jeep Wrangler JK

Sold out
Original price $895.00 - Original price $895.00
Original price $895.00
$895.00 - $895.00
Current price $895.00
The ORACLE Lighting Vector Series Grill for the Jeep Wrangler JK is the first full-featured replacement grill with integrated LED light emitters for Low Beam, High Beam, as well as a Dynamic LED DRL. This unique design is equipped with an array of application-specific LED lighting features and has the aggressive styling and rugged durability that Jeep owners demand. These modules are now robotic-ally sealed to create an Ingress Protection Rating of IP68 which will keep moisture out of your fixtures even from exposure to pressurized water spray and brief underwater submersion. The DRL modules are now mounted with hardware rather than adhesive to make these parts easier to remove for grill painting and maintenance. Each LED beam can be independently adjusted in order to put light on the road without blinding oncoming traffic, especially important for lifted Wranglers. The separate driving and Low Beam lights allow for proper light distribution for optimal road legal light. The Vector Series Grill features an impressive 5,600 Combined Lumen Low Beam with advanced optics for precision lighting that illuminates the road for increased driver visibility without creating glare that can blind oncoming traffic. 7,200 Combined Lumen High Beam for illuminating any dark landscape. The simple wiring connection is "Plug and Play" thanks to the included harness adapter. Additional features of the ORACLE Lighting Vector Series Grill include an integrated LED Daytime Running Light which increases driver safety. This DRL also features a unique "startup sequence" Dynamic LED display. Another safety feature is the LED Turn Signal that is 4x brighter than the factory turn signal lamp. The components of this project were CAD developed to insure that the fit and finish of this product matches factory quality and fitment.
  • Precision Beam "No Glare" output design
  • Eye-Catching Daytime Running Light
  • Each LED emitter can independently adjusted
  • Plug and Play wiring Harness
  • Horizontal and Vertical Adjust-ability
  • Advanced Optics Design for Optimal Visibilit

Additional Attributes:

  • GTIN: 00581750420176
  • Add-On: N/A
  • Body Material: Polycarbonate
  • Contents: (1x) ORACLE Lighting Vector Series Grill, (4x) Adjustable LED Low Beam Emitters, (2x) Adjustable LED Driving Beam Emitters, (2x) LED High Beam Emitters, (2x) Dynamic Daytime Running Lights, (2x) Amber LED Turn Signal Modules, (2x) Removable Mounting Brackets, (2x) Plug & Play Headlight Harnesses, (8x) Metal Grill Retailer Installation Clips, Installation Guide and DIY Video
  • High Beam Lumens: 1600LM
  • Low Beam Lumens: 4000LM
  • Warranty: 2 Year

Extened Information:

  • Emissions : Emission verification to be determined in ACES, vehicle application data.
  • Life Cycle Status: Available To Order


  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 50 x 18.5 x 7.35 inches
