BDS BDS2113FPE 3 Inch Lift Kit -FOX 2.5 Performance Elite Coil-Over - Ram 1500 Rebel (19-24) 4WD

2019-2024 Dodge-Ram 1500 Rebel 4wd 3in. Suspension Lift Kit 3in. rear block Coil spring- Fox 2.5 PES coilover Fox 2.5 PES rear shocks

FOX 2.5 shocks designed specifically for increase travel and the ability to soak up the roughest terrain; BDS Suspension offers a huge assortment of truck, SUV and Jeep lift kits and truck accessories; DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs; High clearance crossmember design maximizes ground clearance; Robust steering knuckles maintain ESC system compliance; HD skid plate system improved offroad protection; Multipoint differential relocation brackets to secure the front axle and improve CV angles; FOX performance series IFP gas rear shocks to improved ride and offroad performance; Factory Protection Plus drivetrain warranty included

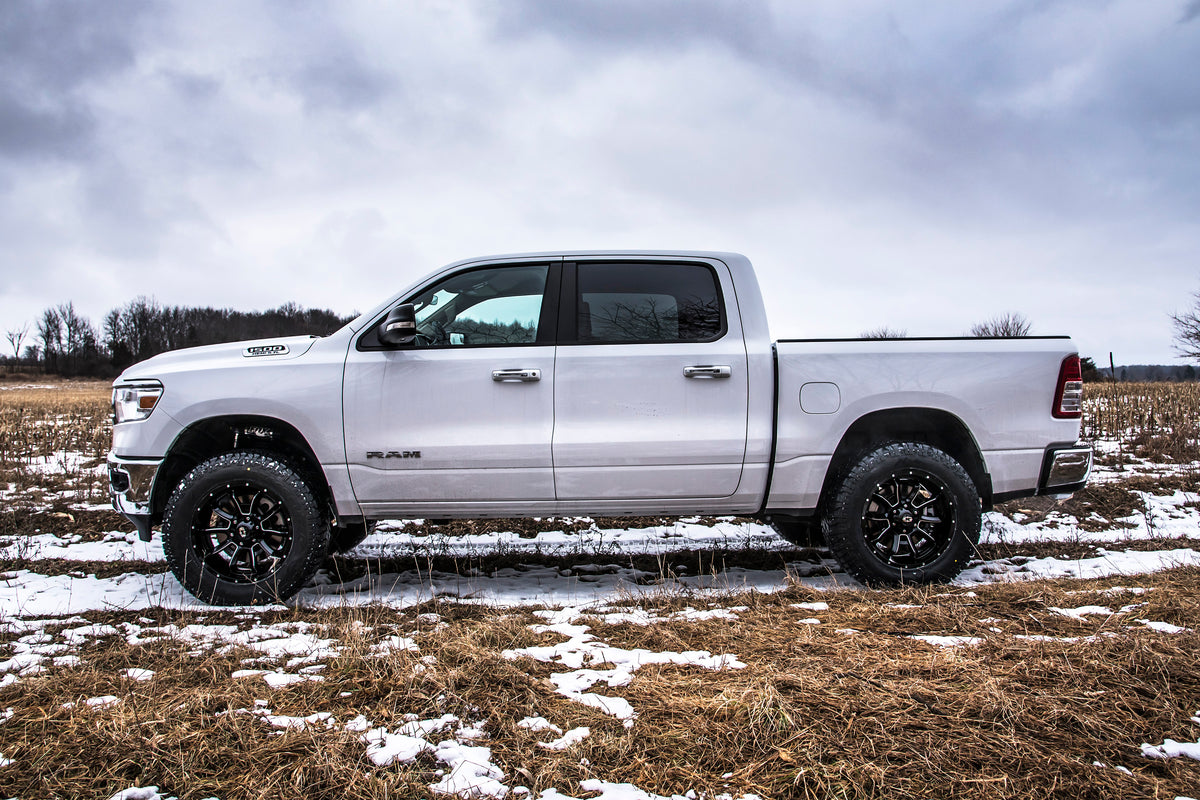

Hit the trails in your 2019-2024 RAM 1500 Rebel truck after installing a 3-inch coil-over suspension lift kit featuring FOX 2.5 Performance Elite Coil-over shocks by BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires; This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 coil-over shocks high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions stainless steel braided brake lines CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.; In the rear this kit utilizes progressive rate Pro-Ride coil springs rear upper control arm relocation brackets to correct pinion angle track bar relocation bracket to correct axle positioning bump stop extensions and sway bar links. The rear of these kits are rounded out with a set of FOX 2.0 IFP performance series gas shocks to offer improved damper performance.; FOX Performance Elite; FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs offering 10 separate low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir to increase cooling efficiency.; High Clearance Crossmembers; BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

• UPC: 00840416413366
• Installation Difficulty: difficult
• Installation Time: 8-10 h
• Front Lift Height: 3 in
• Rear Lift Height: 3 in
• Front Lift Method: Cross Member
• Rear Lift Method: Coil Spring
