BDS BDS1900FSR 6 Inch Lift Kit -FOX 2.0 Strut - Ford F150 (21-24) 4WD
2021-2024 Ford F150 4wd 6in. Suspension Lift Kit 3in. rear block - Fox 2.0 Performance Series Snap Ring front shocks Fox 2.0 Performance Series rear shocks
FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned precision valving; BDS Suspension offers a huge assortment of truck, SUV and Jeep lift kits and truck accessories; High clearance crossmembers improve strength and offroad capability; Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility; Top mounted strut spacers to provide lift and install easily; Differential skid plate for improved offroad protection; Rear lift blocks and u-bolts to lift and level the stance

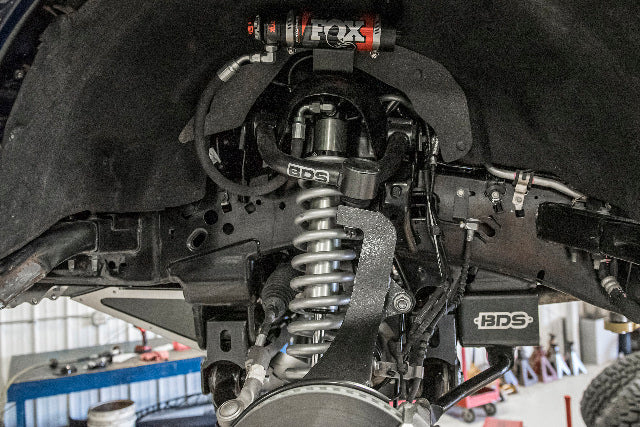

Increase the performance and capability of the 2021-2024 Ford F150 trucks with 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.; This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.; In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.; FOX 2.0 Struts; These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion along with an internal floating piston (IFP) to eliminate oil aeration FOX's proprietary internals 5/8" hard chrome plated heat-treated alloy shaft.; High Clearance Crossmemebers; BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.; Heavy Duty Steering Knuckles; BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
- UPC: 00840416410457
- Installation Difficulty: difficult
- Installation Time: 8-10 h
- Front Lift Height: 6 in
- Rear Lift Height: 3 in
- Front Lift Method: Cross Member
- Rear Lift Method: Block
