FOX 883-02-128

by FOX
Special order – Usually takes 2-3 weeks – Contact us for more information
SKU BKTK_883-02-128
Sold out
Original price $0.00 - Original price $0.00
Original price
$759.95 - $759.95
Current price $759.95

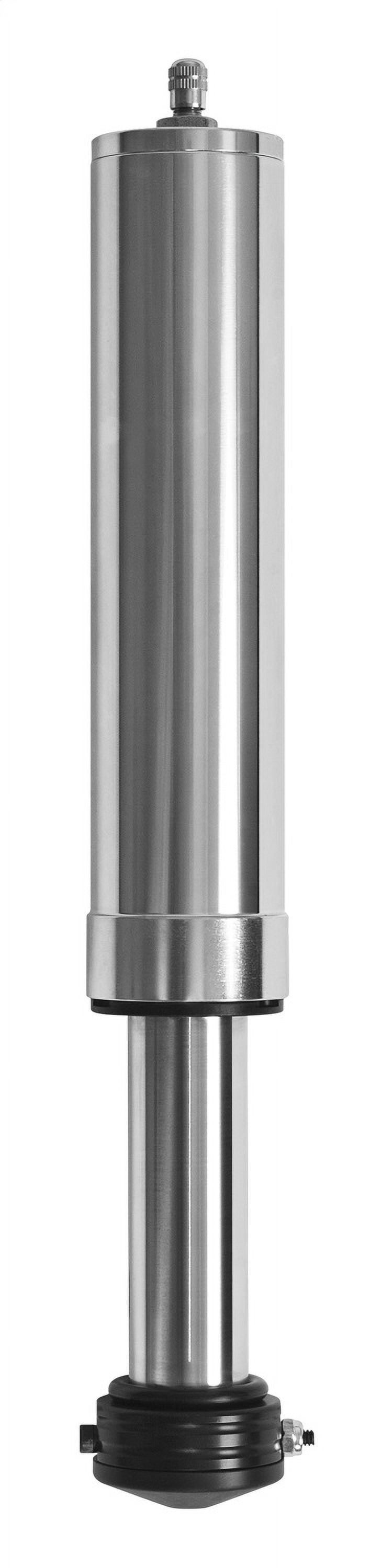

Inspired by its off-road racing predecessors, the new Factory Race Series bump stop combines race-proven technology with new, cutting-edge features to provide increased damping performance and bottom-out control in the last few inches of suspension travel.

The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top-outs. The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad.

Factory Series bump stops allow you to use every inch of suspension travel without harsh bottoming.

Body Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
Components Black anodized, CNC machined 6061-T6 billet aluminum
Pad Replaceable Delrinu00ae strike pad
Shaft Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP) for increased damping performance
Piston Heavy-duty powdered steel
Valving Tunable, velocity-sensitive deburred valve shims
Seals Redundant sealing pack system, main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures Adjustments
Adjustments Nitrogen pressure
Travel (in) 1.950
Compressed (in) 7.800
Extended (in) 9.750
Top Mount Eyelet
Bottom Mount Eyelet



LENGTH 18.75 in.
WIDTH 6.62 in.
HEIGHT 3.25 in.
WEIGHT 45.00 lbs.

Documents & Links

pdf Installation Guide

pdf Exploded View Diagram

pdf Off-Road Catalog
