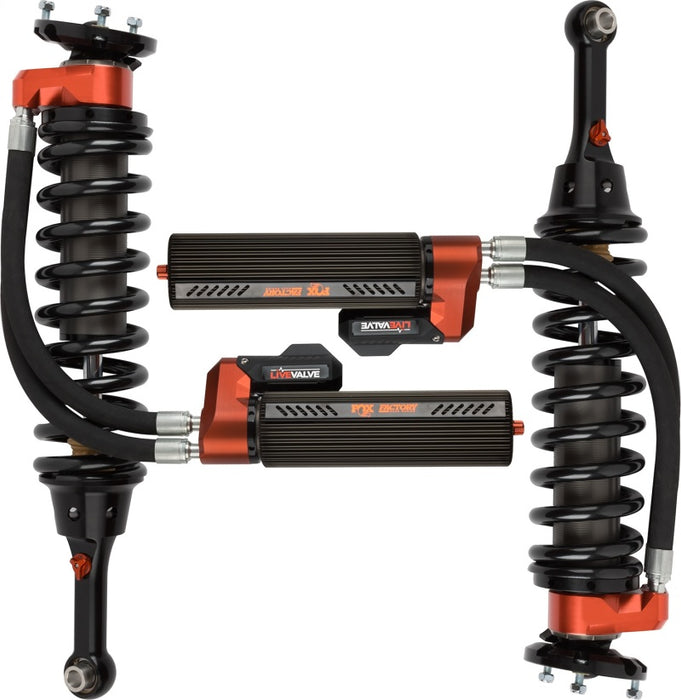

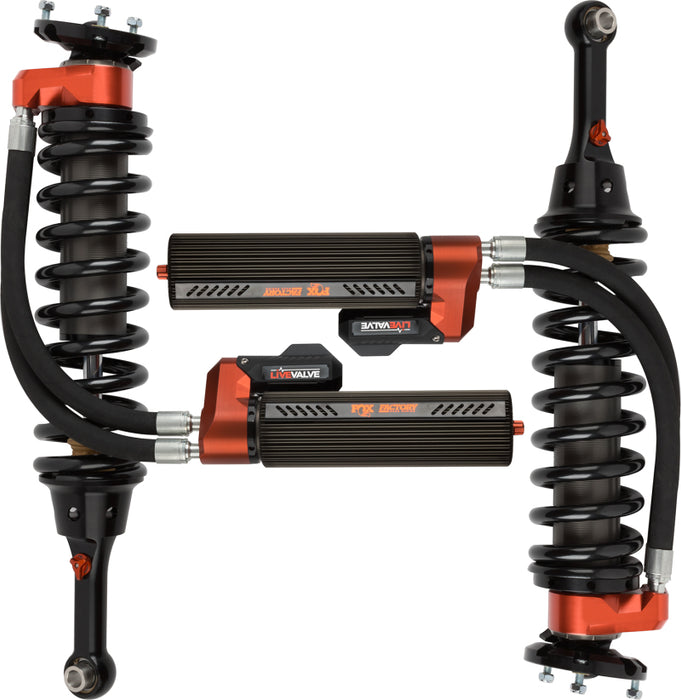

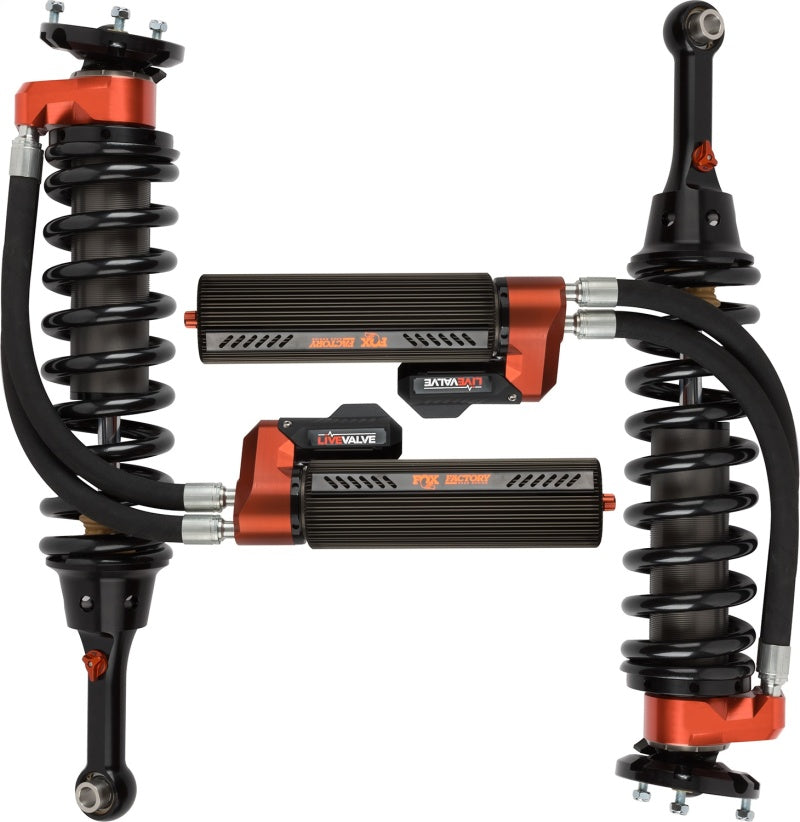

FOX 883-06-153 FITS Ford F-150 Raptor 2019 - 2020 FRONT Front Lift 0-2" SERIES 3.0 LIVE VALVE INTERNAL BYPASS COIL-OVER (PAIR) - ADJUSTABLE

Sold out
Original price $3,540.58 - Original price $3,540.58
Original price
$3,540.58 - $3,540.58
Current price $3,540.58
SKU BKTK_883-06-153

By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.

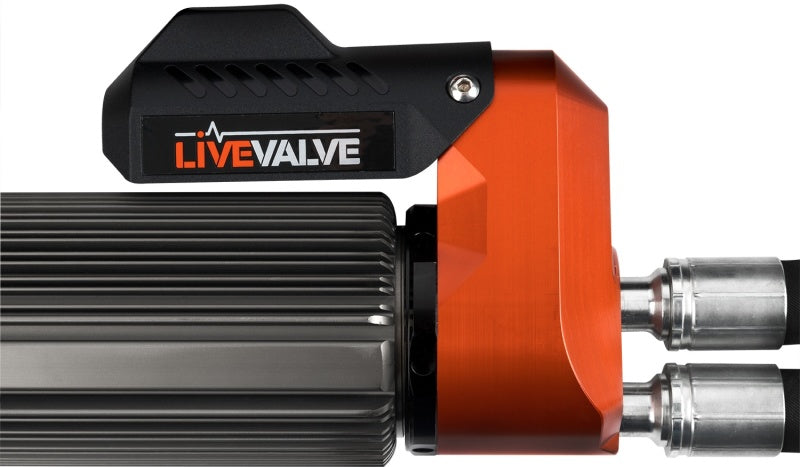

NEW Live Valve semi-active technology equipped, plug and play integration to factory electronics
NEW Rebound and compression adjustable via Quick Switch Technology (QS3)

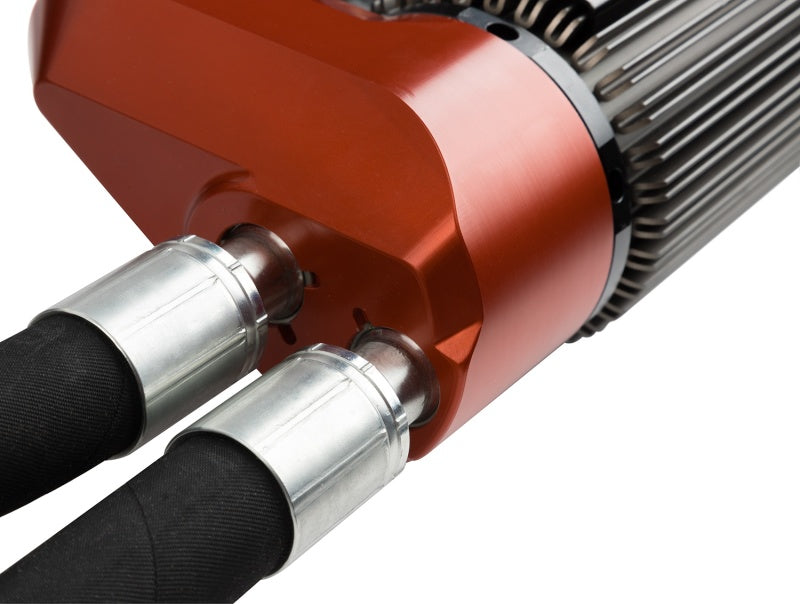

NEW Rotatable hose fittings for easy installation
FOX patented, position-sensitive Internal Bypass damping technology

Body 3.0" impact-extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
Body Plating Hard-anodized for a durable finish

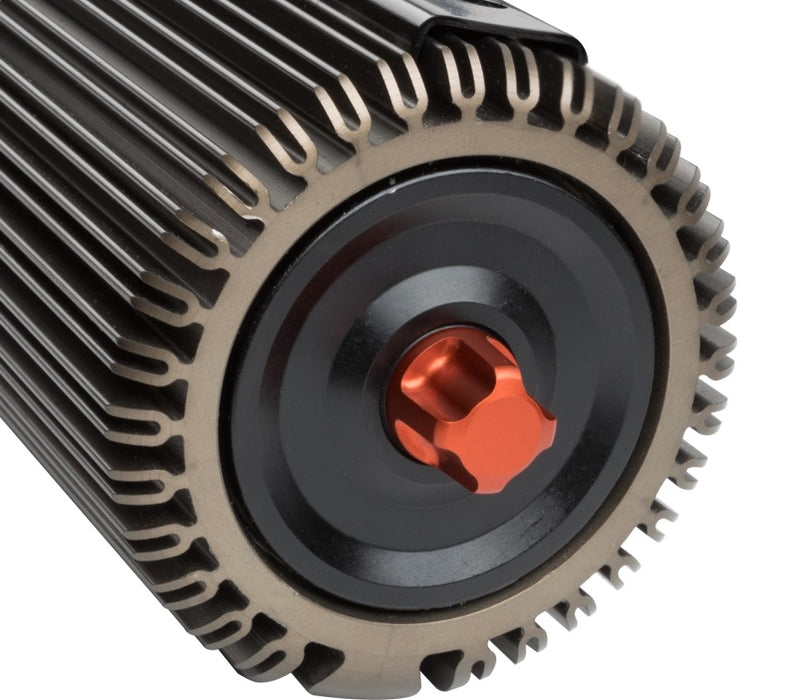

Reservoir Hard anodized aluminum finned remote reservoir (front) and piggyback reservoir and cooler (rear) resist corrosion and help dissipate heat fast. External fins act as heat sinks for increased heat dissipation.
Components Anodized, CNC-machined 6061-T6 billet aluminum

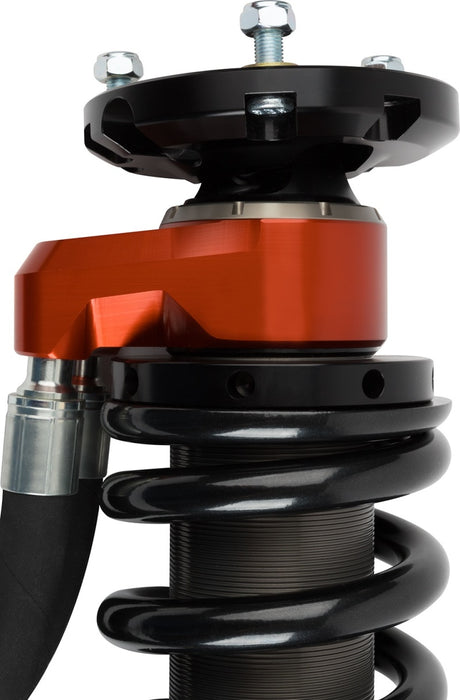

Spring Heavy-duty 3.75? racing spring (fronts)
Shaft 7/8" hard chrome plated 17-4 H900 stainless steel
Piston Hard anodized 6061-T6 billet aluminum high flow race piston
Valving Application-specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
Oil JM92 Advanced Suspension Fluid

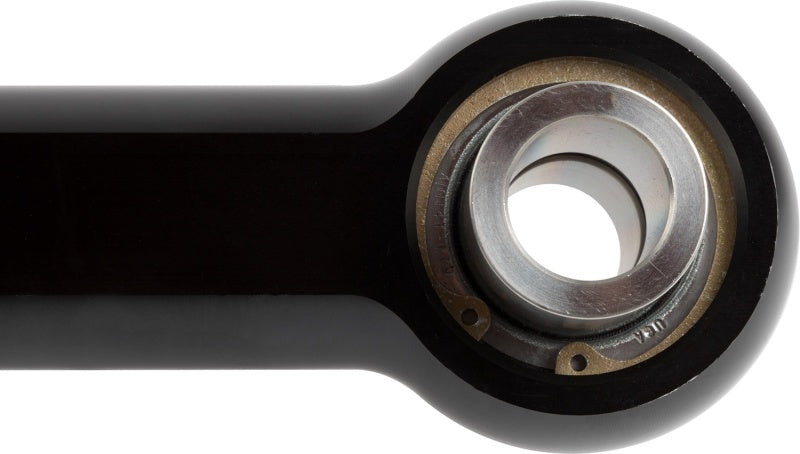

Bearing PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
Mounting Heat-treated steel spherical Heim mounting
Adjustments Adjustable ride-height/preload

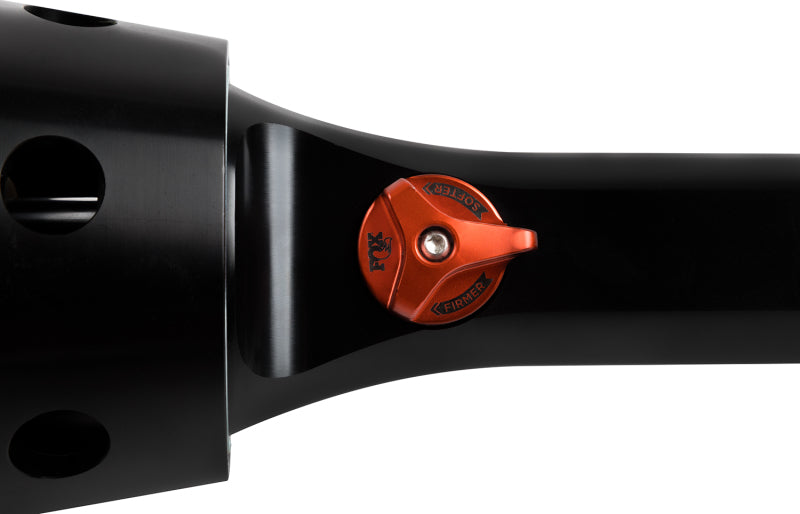

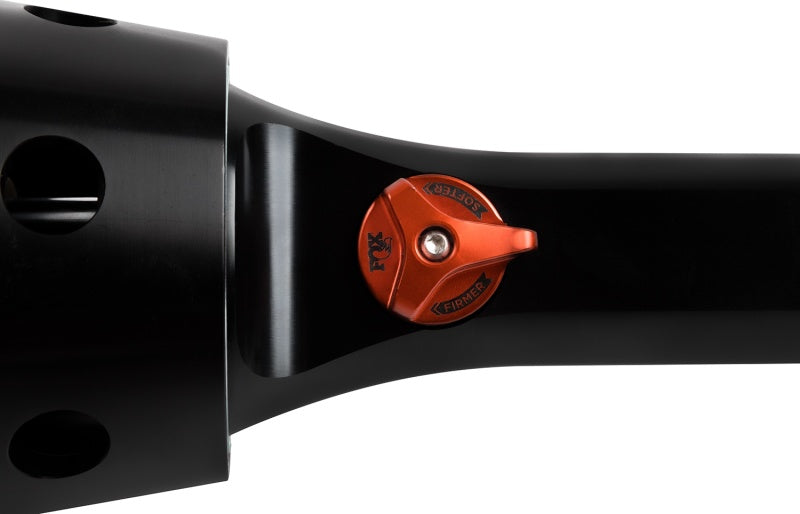

QS3 rebound and compression adjuster
Extended 29.120
Compressed 21.150
Travel 7.970
Top Mount Top
Bottom Mount Eyelet
Fitment Reservoir Mounting Hardware Included


LENGTH 31.50 in.
WIDTH 19.00 in.
HEIGHT 10.50 in.
WEIGHT 26.80 lbs.
