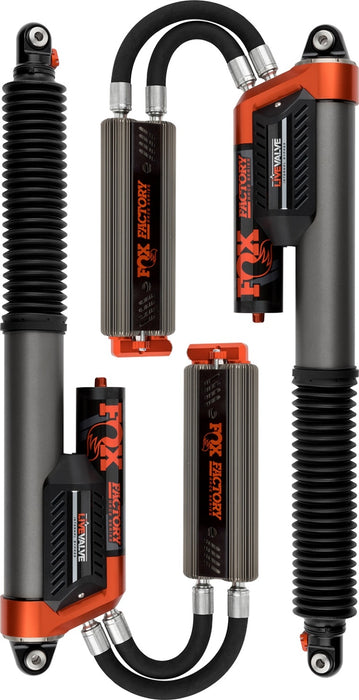

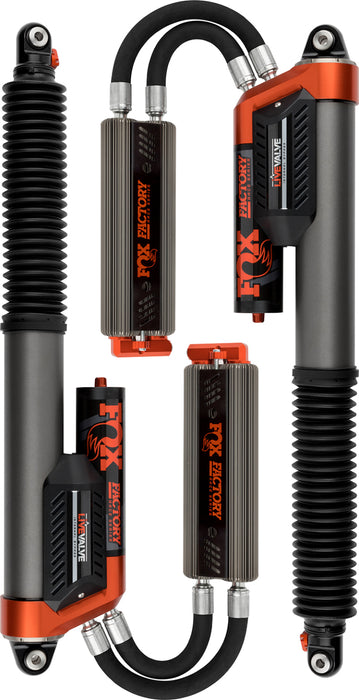

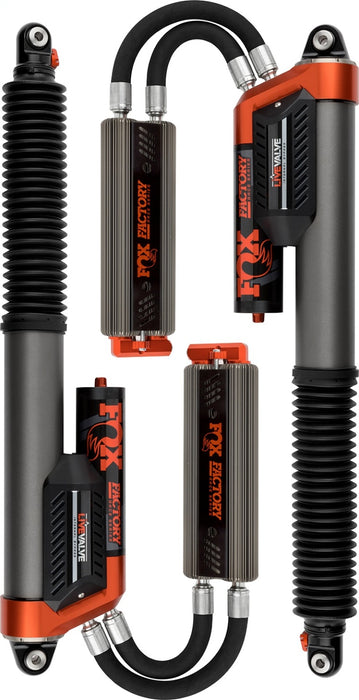

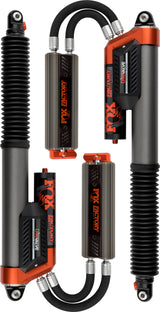

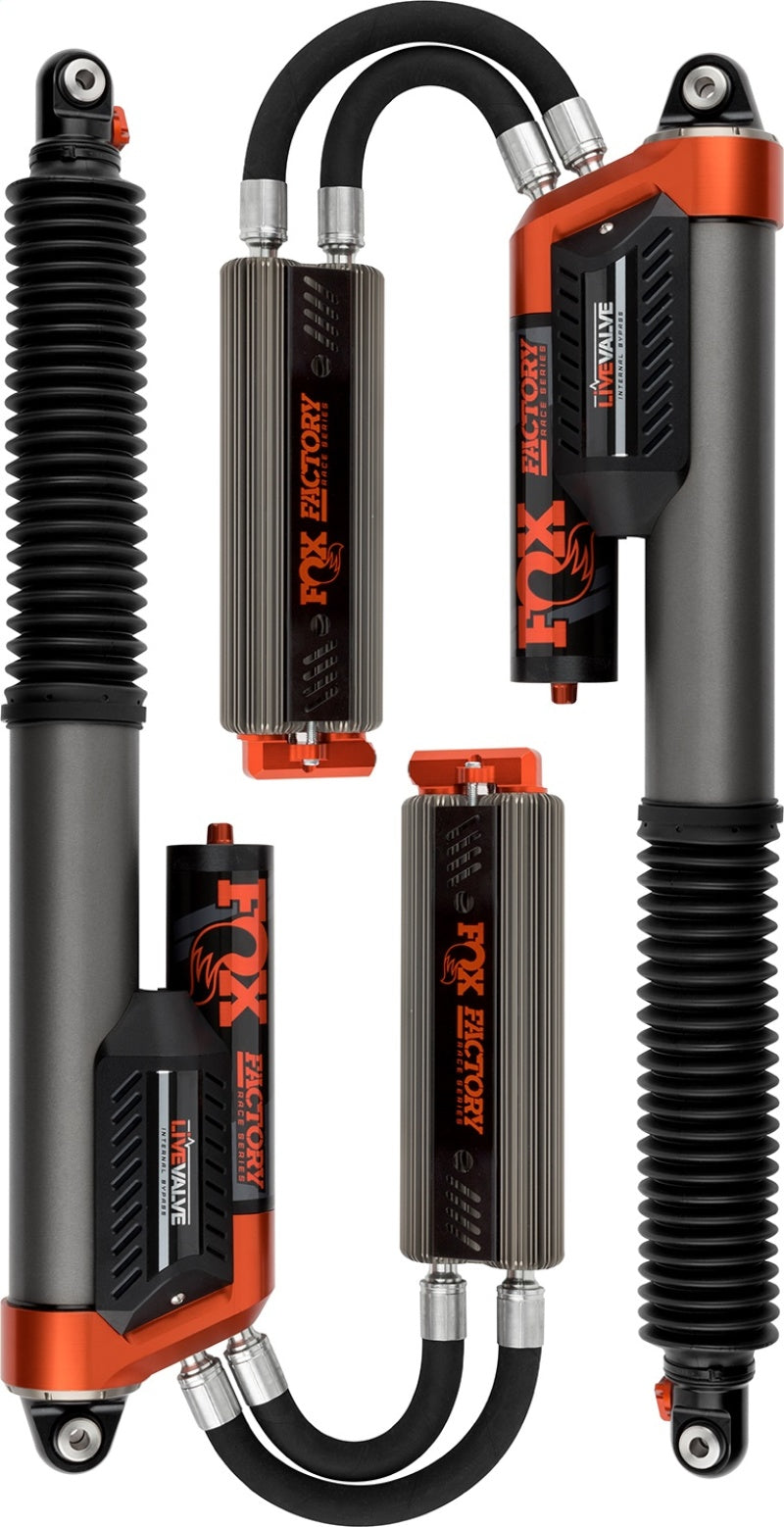

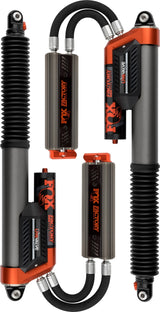

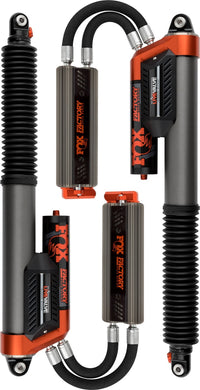

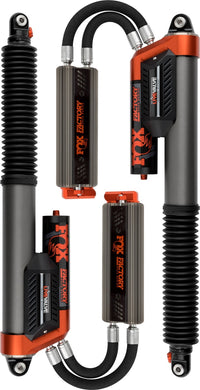

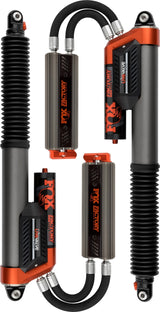

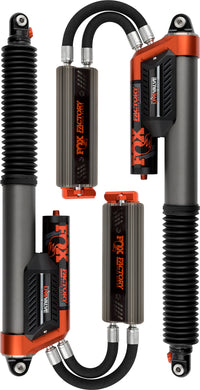

Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair) - Adjustable - 883-09-153

by FOX
In Stock - More than 10+
SKU BKTK_883-09-153
Save 10% Save 10%
Original price $3,499.95
Original price $3,499.95 - Original price $3,499.95
Original price $3,499.95
Current price $3,149.96
$3,149.96 - $3,149.96
Current price $3,149.96
Description

By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.

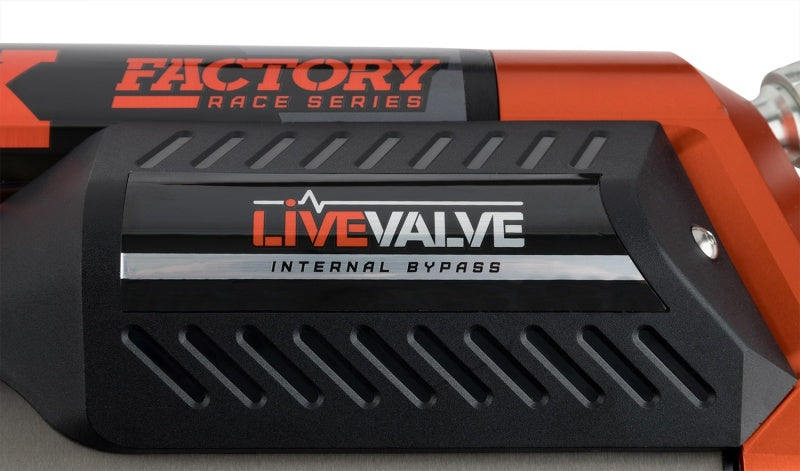

NEW Live Valve semi-active technology equipped, plug and play integration to factory electronics
NEW Rebound and compression adjustable via Quick Switch Technology (QS3)

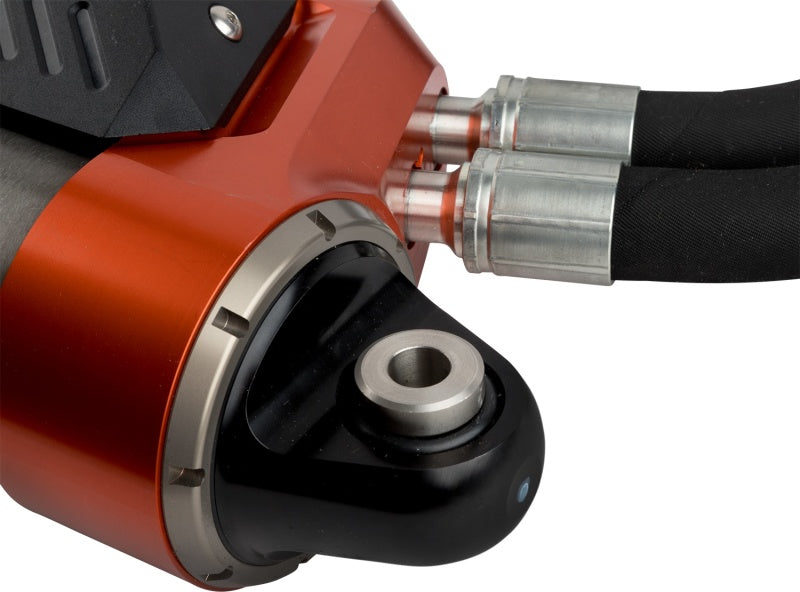

NEW Rotatable hose fittings for easy installation
FOX patented, position-sensitive Internal Bypass damping technology

Features
Body 3.0" impact-extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
Body Plating Hard-anodized for a durable finish

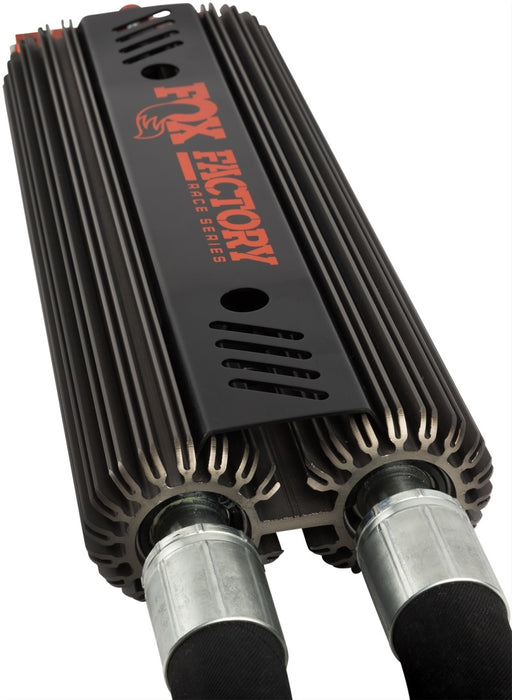

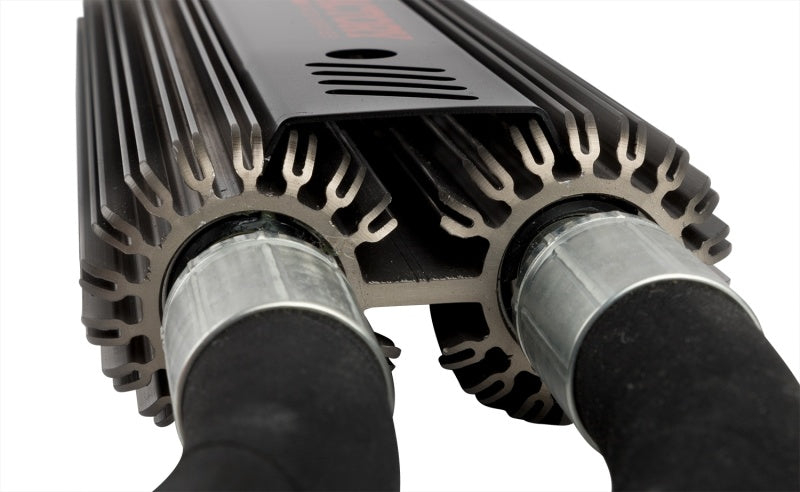

Reservoir Hard anodized aluminum finned remote reservoir (front) and piggyback reservoir and cooler (rear) resist corrosion and help dissipate heat fast. External fins act as heat sinks for increased heat dissipation.
Components Anodized, CNC-machined 6061-T6 billet aluminum
Spring Heavy-duty 3.75? racing spring (fronts)
Shaft 7/8" hard chrome plated 17-4 H900 stainless steel
Piston Hard anodized 6061-T6 billet aluminum high flow race piston
Valving Application-specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
Oil JM92 Advanced Suspension Fluid
Bearing PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
Mounting Heat-treated steel spherical Heim mounting
Adjustments Adjustable ride-height/preload

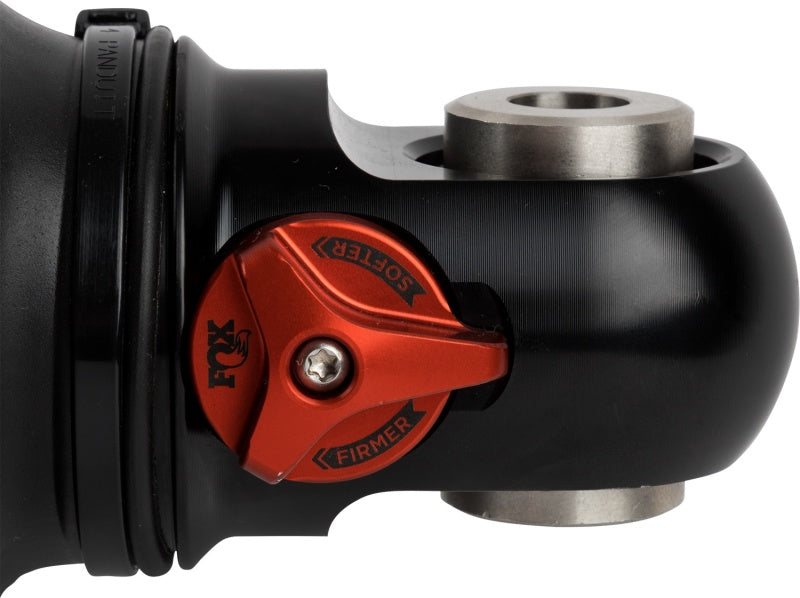

QS3 rebound and compression adjuster
Extended 31.150
Compressed 18.980
Travel 12.170
Top Mount Eyelet
Bottom Mount Eyelet

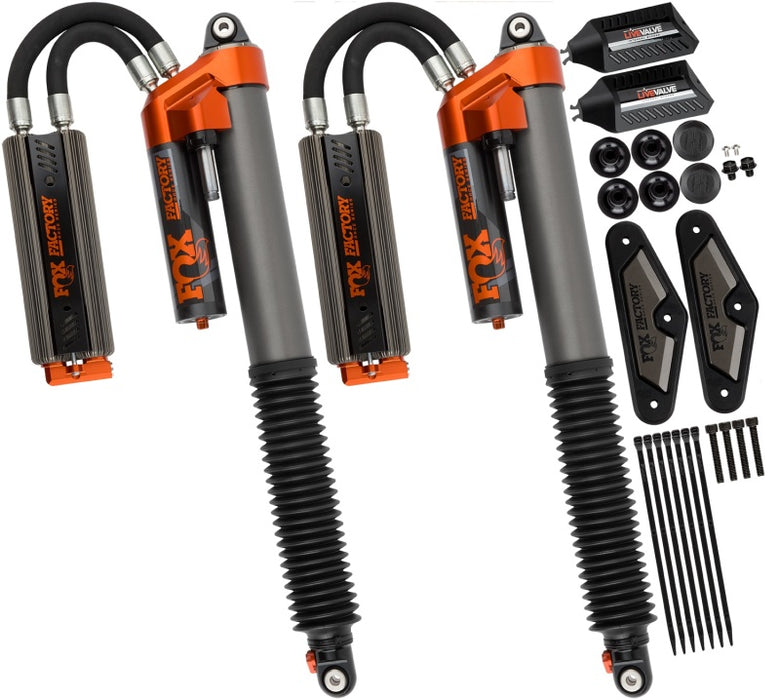

Fitment notes External Cooling System (ECS2) Mounting Hardware Included


Shipping

LENGTH 38.50 in.
WIDTH 20.00 in.
HEIGHT 11.25 in.
WEIGHT 99.00 lbs.
DIM WEIGHT 39 lbs
