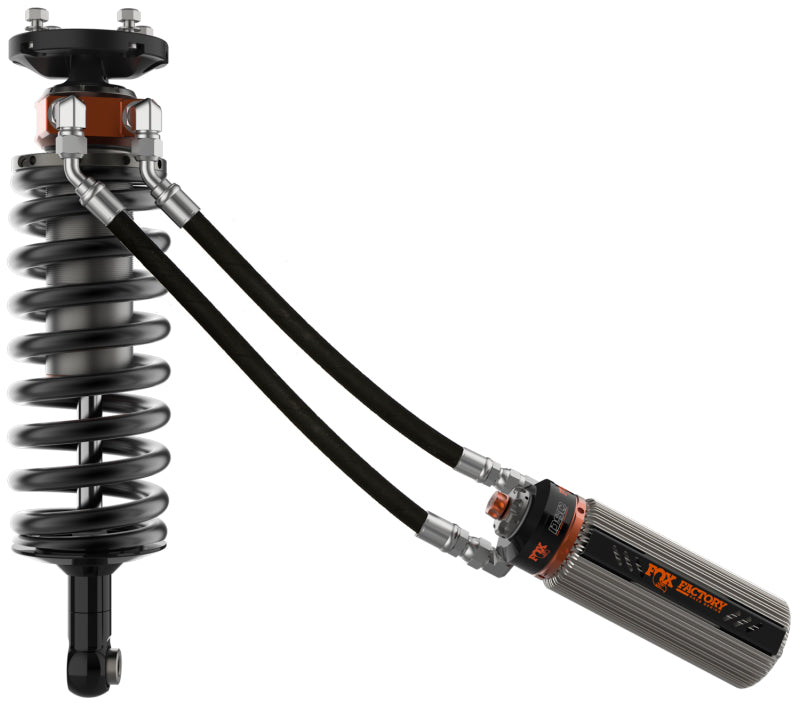

FOX 883-06-219 Factory Race Kit: 22-On Fits toyotaTundra, w/UCA, Front Coilover, Internal Bypass, 3.0 Series, Recirc R/R, DSC, 2-2.25? Lift

FOX 883-06-219 Factory Race Kit: 22-On Fits toyotaTundra, w/UCA, Front Coilover, Internal Bypass, 3.0 Series, Recirc R/R, DSC, 2-2.25? Lift

by FOX
In Stock - More than 10+
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU BKTK_883-06-219
$0.00 - $0.00
$3,426.25
$3,426.25 - $3,426.25
$3,426.25
Availability:
in stock, ready to be shipped
Request a quote

Product Tags: fox toyota-tundra-2022 toyota-tundra-2023 toyota-tundra-2024

DESCRIPTION

FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

A Recirculating Reservoir Bridge enables the continuous exchange of shock fluid between the finned external reservoir and body using a checked port, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. Dial in your Tundra for load, environment, and driving style with the DSC adjuster.

FOX Internal Bypass shocks deliver the support and confidence you need while driving high-speed through rugged terrain. Experience race-bred performance next time you leave the pavement.

FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position and velocity-sensitive damping, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Experience the support and confidence you need while driving high-speed through rugged terrain.

Features 3.0" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body
Patented, internal bypass design
Application-specific springs
7/8" stainless steel shafts
Vehicle-specific tuning maximizes performance
Redundant sealing pack system: main seal, wiper seal, scraper seal
Finned reservoir, with DSC adjuster
Adjuster Type DSC - Dual Speed Compression
Extended 21.690
Compressed 15.650
Travel 5.370
Top Mount OEM
Bottom Mount Eyelet
Fitment notes Requires Upper Control Arm | Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3” TRD Lift Kit silver axle)
MSRP $3699.95

VIDEO

DOCUMENTS & LINKS

pdf Installation Guide »
web link Warranty »
