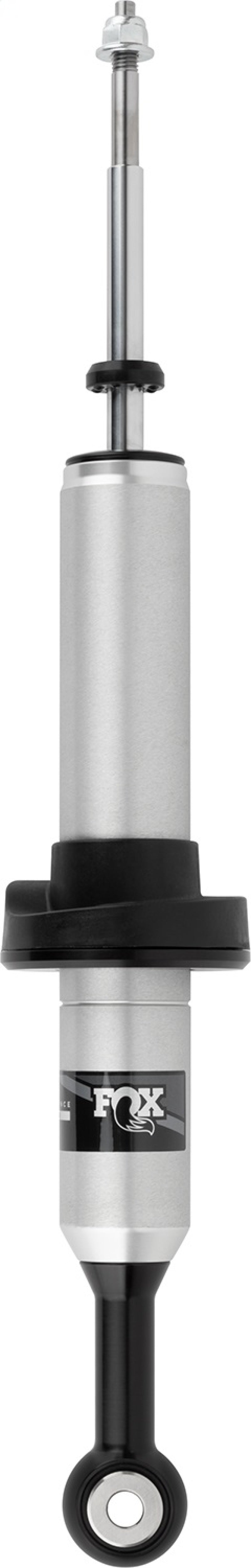

FOX Performance Series 2.0 Snap Ring Coil-Over IFP Shock Front (Spring NOT included) TOYOTA TACOMA 2016-2019 4WD/RWD - 985-62-000

by FOX
Sold out
Original price $249.95 - Original price $249.95
Original price
$249.95 - $249.95
Current price $249.95
SKU 985-62-000

Spring not included | Reuses stock mounting hardware

Our Performance Series 2.0 Coil-Over Snap Ring IFP shock is a bolt-on solution, loaded with a long list of features that set it apart. This includes a new custom-molded spring seat, allowing you to reuse your stock spring and mounting hardware while providing excellent on- and off-road performance at an affordable price point. The precision, the impact-extruded aluminum body is lightweight and rust-resistant.

Inside the shock is an internal nitrogen-charged gas reservoir, contained by an internal floating piston (IFP) which separates the charged gas from the shock oil. The IFP eliminates oil from mixing with the nitrogen as is possible with the stock twin-tube shocks, allowing maximum performance from the factory-tuned precision valving. Three predetermined preload settings allow a choice of 0 in, 1 in or 2 in of lift.

The easy-to-install Performance Series 2.0 Coil-Over Snap Ring IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Body 2.0 Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Spring Not Included
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application-specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing Large diameter, heavy-duty spherical
Adjustment Ride height preload ring
Extended 24.920
Compressed 20.050
Travel 4.870
Top Mount Reuses Stock Mounting Hardware
Bottom Mount Eyelet
Fitment notes Spring not included | Reuses stock mounting hardware



LENGTH 34.50 in.
WIDTH 5.75 in.
HEIGHT 3.00 in.
WEIGHT 15.00 lbs.

Documents & Links


pdfExploded View Diagram
pdfInstallation Guide
pdfTruck Catalog
web linkWarranty
