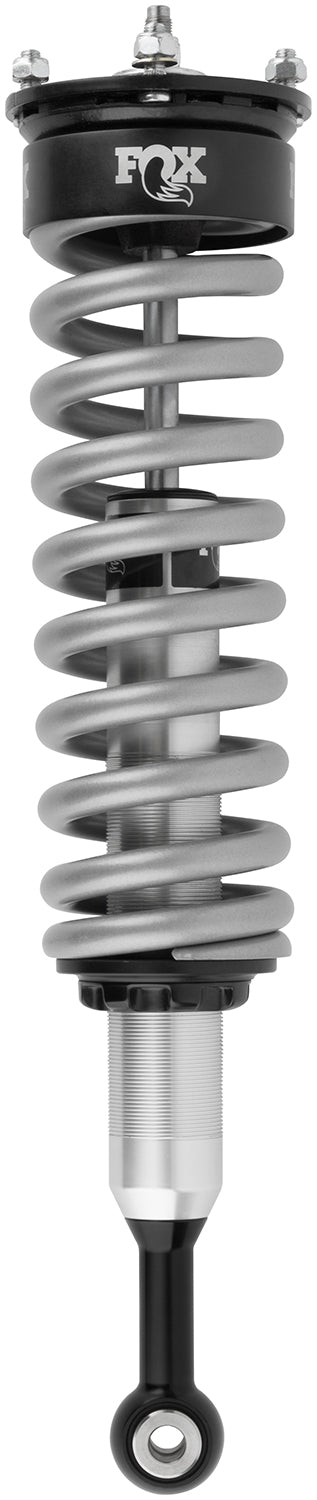

FOX 983-02-054 Fits Nissan Pathfinder 2005-2012 Front Lift 0-2" Series 2.0 Coil-Over IFP Shock

by FOX
In Stock - More than 10+
SKU BKTK_983-02-054
Save 10% Save 10%
Original price $549.95
Original price $549.95 - Original price $549.95
Original price $549.95
Current price $494.96
$494.96 - $494.96
Current price $494.96
Description

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust-resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Features
Body 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application-specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing Large diameter, heavy-duty spherical
Adjustments Ride height preload ring
Extended 16.857
Compressed 12.532
Travel 4.325
Top Mount OEM
Bottom Mount Eyelet

Shipping

LENGTH 28.75 in.
WIDTH 5.75 in.
HEIGHT 5.75 in.
WEIGHT 21.00 lbs.
DIM WEIGHT 4 lbs

Documents & Links

DOCUMENTS & LINKS

pdf Exploded View Diagram

pdf Installation Guide

pdf Off-Road Catalog

web link Warranty
