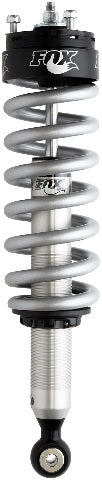

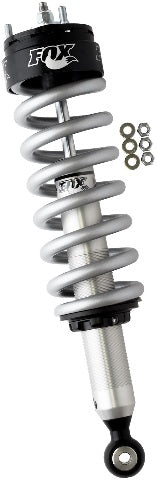

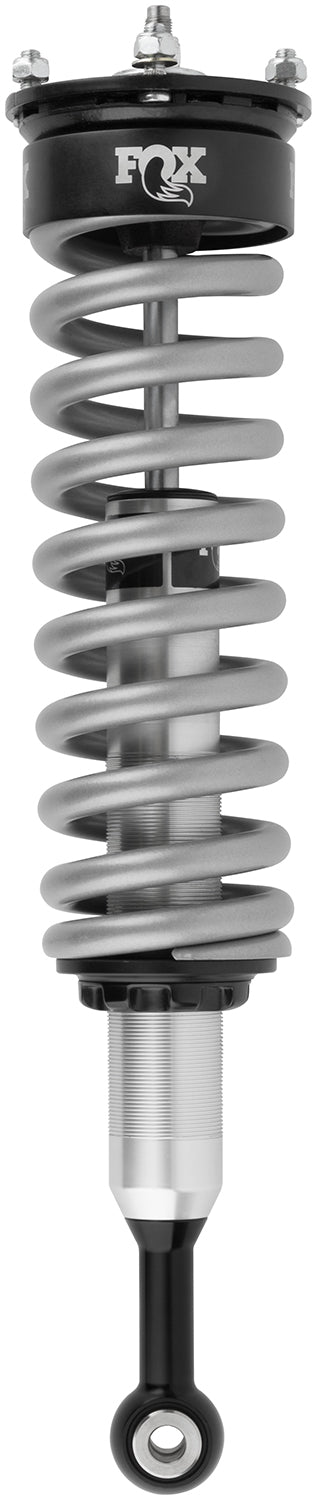

Performance Series 2.0 Coil-Over IFP Shock - 983-02-085
Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust-resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
|Body||2.0u201d Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time|
|Body Plating||Clear-anodized for a durable finish|
|Reservoir||Internal IFP mono-tube reservoir design|
|Components||Black-anodized, CNC-machined 6061-T6 billet aluminum|
|Shaft||5/8" hard chrome plated heat-treated alloy steel|
|Piston||Race-developed high-flow piston design|
|Valving||Application-specific valving to maximize performance|
|Seals||Redundant sealing pack system main seal, wiper seal, scraper seal|
|Oil||JM92 Advanced Suspension Fluid for improved performance at variable temperatures|
|Bearing||Large diameter, heavy-duty spherical|
|Adjustments||Ride height preload ring|
|Fitment notes||Fits T6 Models Only|
LENGTH 30.00 in.
WIDTH 6.00 in.
HEIGHT 6.00 in.
WEIGHT 20.00 lbs.
DIM WEIGHT 5 lbs
