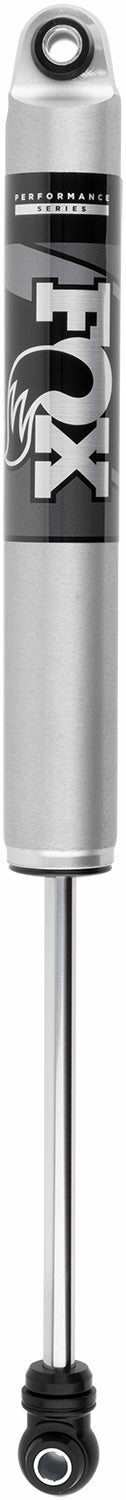

Performance Series 2.0 Smooth Body IFP Shock - 985-24-034
Description
The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application-specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.u00a0
Features
| Body | 2.0" Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application-specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Extended | 21.550 |
| Compressed | 13.950 |
| Travel | 7.600 |
| Top Mount | Stem Top |
| Bottom Mount | Eyelet |
Video
Shipping
LENGTH 41.00 in.
WIDTH 2.50 in.
HEIGHT 2.50 in.
WEIGHT 7.00 lbs.
DIM WEIGHT 1 lbs
Documents & Links
Installation Guide u00bbExploded View Diagram u00bbOff-Road Catalog u00bb
Warranty u00bb
