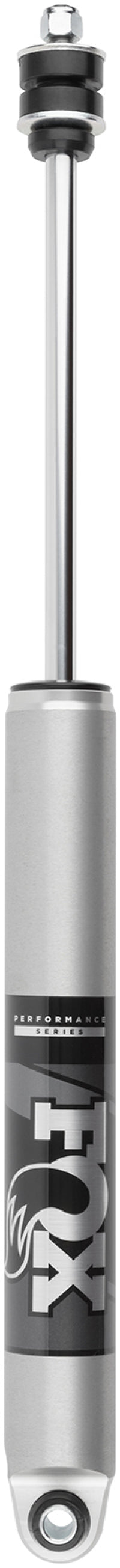

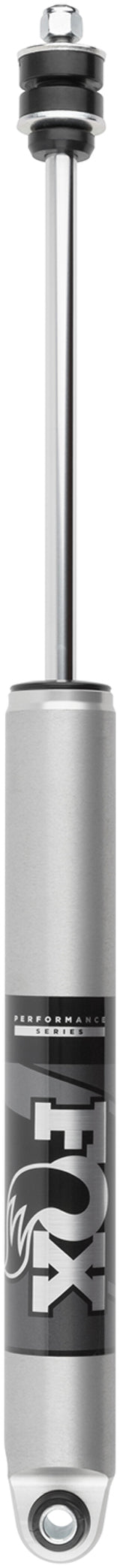

PERFORMANCE SERIES 2.0 SMOOTH BODY IFP SHOCK - 985-24-231

by FOX
$169.95
SKU 985-24-231
Description

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Features
Body 2.0u201d Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings Quiet nitrile rubber allows for increased suspension articulation
Travel (in) 10.600
Compressed (in) 16.050
Extended (in) 26.650
Top Mount Stem Top
Bottom Mount Eyelet
Fitment notes Does Not Fit Air Ride Models

u00a0

Shipping

LENGTH 24.88 in.
WIDTH 3.13 in.
HEIGHT 3.13 in.
WEIGHT 5.00 lbs.
DIM WEIGHT 1 lbs

u00a0

Documents & Links

pdf Installation Guide u00bb

pdfu00a0u00a0Truck Catalog u00bb

web linku00a0u00a0Warranty u00bb
