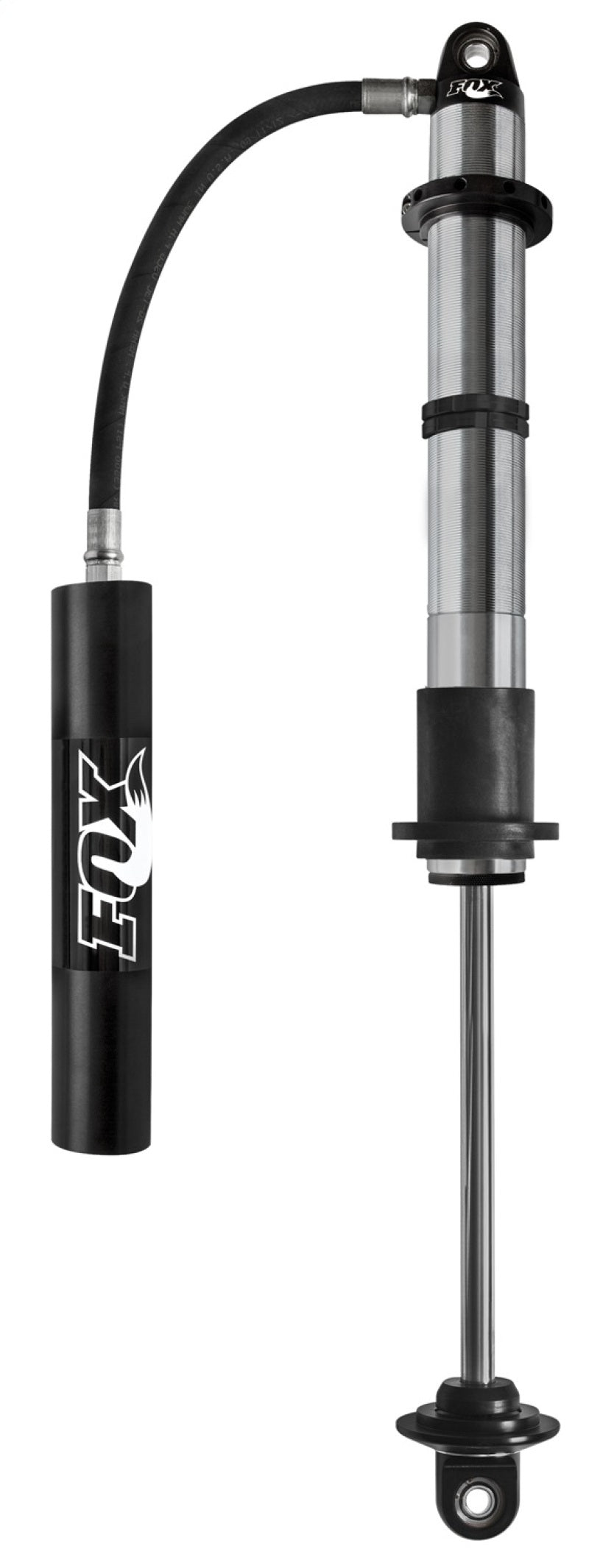

Performance Series 2.5 X 14.0 Coil-Over Shock - 983-02-105

by FOX
$519.95
SKU 983-02-105

Off-road Performance Series coil-over shocks take advantage of our tried-and-true coil-over design and incorporates features like rubber braided steel hoses with high-flow fittings for improved durability and performance.

Pinch-bolt spring preload rings allow easy ride height and preload adjustment and retain the top quality racing coil selected to deliver your optimal spring rate. Our off-road Performance Series coil-over shocks will suspend your vehicleu2019s weight and provide our race-proven, performance damping technology to tame the toughest terrain. If you are looking for a comfortable ride and predictable off-road handling, look no further.

Body Smoothbore and honed seamless steel
Body Plating Zinc plated for a long-lasting finish
Components Black anodized, CNC machined 6061-T6 billet aluminum
Piston Race-developed high flow design
Valving Tunable, velocity-sensitive deburred valve shims
Seals Redundant sealing pack system, main seal, wiper seal, scraper seal*
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Shafts 17-4 H900 hard chrome-plated stainless steel
Bearing Spherical, PFTE-lined, heat-treated alloy steel
Spring Not Included
Adjustments Spring preload ring
Dual-stage crossover ring
Extended 37.450
Compressed 23.440
Travel 14.010
Top Mount Eyelet
Bottom Mount Eyelet
Reservoir Remote
Reservoir Size 2.5 x 14.00
Hose -8 x 18.0
Mounting 1/2 x 1.50
Valving 50/70


LENGTH 47.75 in.
WIDTH 6.87 in.
HEIGHT 4.75 in.
WEIGHT 15.00 lbs.
DIM WEIGHT 7 lbs
