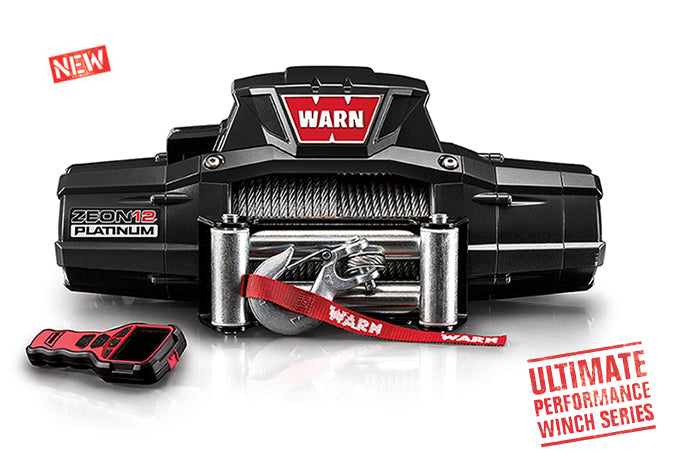

WARN Zeon 12 Platinum Winch 92820

WARN Zeon 12 Platinum Winch 92820

by WARN
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU BCSQ_92820
Sold out
$0.00 - $0.00
$2,277.84
$2,277.84 - $2,277.84
$2,277.84
Availability:
Out of stock
Request a quote

Product Tags: 00012748048046 92820 motor-vehicle-towing towing warn warn-winch-vehicle-mounted-vehicle-recovery-winch-12-volt-electric-two-16-amp-accessory-ports-12000-pound-line-pull-capacity-80-foot-wire-rope-roller-fairlead-wireless-remote-convertible-control-pack-planetary-gear-drive-92820 winch winches zeon zeon-platinum zeon-platinum-winch

Description

>This Warn Industries ZEON (R) 12 Platinum 12 volt electric Winch is vehicle mounted and has a pull capacity of 12,000 pounds. It has an 80 feet wire rope. Note: This Winch will require a winch mount for proper installation.

Video



Overview

Now the world's most technologically advanced winch - the ZEON Platinum™ - comes in a 12,000-pound capacity version spooled with extra-strong Spydura® Pro synthetic rope. Already packed with performance features, ZEON Platinum 12-S features the Advanced Wireless Remote that puts winch, clutch and accessory control in the palm of your hand. And now, with the addition of Spydura Pro, you can really see what it means to be winching's top dog.

  • All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating.
  • The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter.
  • Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, without, and freespool operations. No more engaging a manual clutch, with frozen fingers while standing in the mud.
  • Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing.
  • Large diameter alloy winch drum with steel sleeve is strong, lightweight, reduces rope wear, and has an integrated rope anchor for easy rope installation.
  • Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specs

TYPE Electric
MOUNT TYPE Vehicle Mounted
RECOMMENDED USE Vehicle Recovery
VOLTAGE 12 Volt
ELECTRICAL CONTROL TYPE Contactors
MOTOR TYPE Series Wound
THERMAL SHUTOFF No
DRIVE GEAR TYPE Planetary
GEAR REDUCTION RATIO 216:1
FREE SPOOLING Yes
BRAKE TYPE Mechanical Cone
LINE DIAMETER (IN) 3/8 Inch
LINE LENGTH (FT) 80 Feet
LINE MATERIAL Steel
FAIRLEAD TYPE Roller
CONFORMS TO J706 STANDARDS No
REMOTE TYPE Wireless
MOUNTING HOLE QUANTITY 4
OPERATION TYPE Automatic
MOUNTING PATTERN LENGTH (IN) 10 Inch
MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
INCLUDES MOUNTING HARDWARE Yes
COLOR Black
DRUM MATERIAL Aluminum
MAX AMP DRAW/ LINE PULL 446 Amp Draw/ 12000 Pound
MAX LINE PULL/ LINE SPEED 12000 Pound/ 4.5 Feet Per Minute
