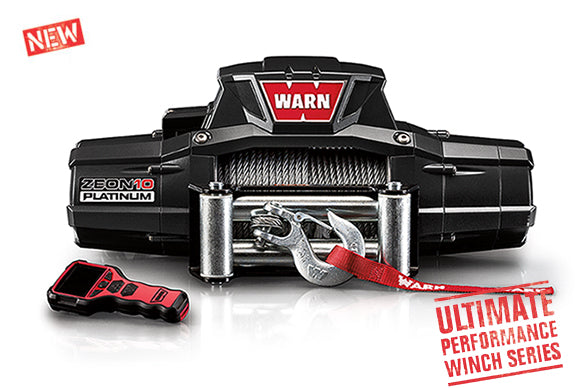

WARN Zeon Platinum 10 Winch 92810

WARN Zeon Platinum 10 Winch 92810

by WARN
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU BCSQ_92810
Sold out
$0.00 - $0.00
$2,191.76
$2,191.76 - $2,191.76
$2,191.76
Availability:
Out of stock
Request a quote

Product Tags: 00012748048022 92810 motor-vehicle-towing warn warn-winch-vehicle-mounted-vehicle-recovery-winch-12-volt-electric-two-16-amp-accessory-ports-10000-pound-line-pull-capacity-80-foot-wire-rope-roller-fairlead-wireless-remote-convertible-control-pack-planetary-gear-drive-92810 winch winches zeon-platinum zeon-platinum-winch

Description

>This Warn Industries ZEON (R) 10 Platinum 12 volt electric Winch is vehicle mounted and has a pull capacity of 10,000 pounds. It has an 80 feet wire rope. Note: This Winch will require a winch mount for proper installation.

Video



Overview

Getting unstuck just went high tech. Meet the WARN ZEON Platinum 10 --the most technically advanced winch ever conceived. The manual clutch has been eliminated. An Advanced Wireless Remote controls not only the winch but also the clutch and other accessories. Durability and waterproofing set a new benchmark for its class. Add in a high-performance motor package, and you have a game changing winch for trucks, Jeeps, and SUVs.

  • Rated line pull of 10,000 lbs. (4536 kg) single-line
  • Comes with 80' of 3/8" (24.38m of 9.52mm) aircraft-grade wire rope and a roller fairlead
  • Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winch-out, and freespool operations. The manual clutch has been eliminated. No more re-engaging a manual clutch, with frozen fingers while standing in the mud
  • The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter
  • All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating
  • Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing
  • Large diameter alloy winch drum with steel sleeve is strong, lightweight, reduces rope wear, and has an integrated rope anchor for easy rope installation
  • Extreme waterproofing meets rigorous IP68 standards--the highest rating in the WARN Truck/SUV winch lineup
  • Automatic mechanical cone brake offers excellent control while winching
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Specs
TYPE Electric
MOUNT TYPE Vehicle Mounted
RECOMMENDED USE Vehicle Recovery
VOLTAGE 12 Volt
ELECTRICAL CONTROL TYPE Contactors
MOTOR TYPE Series Wound
THERMAL SHUTOFF No
DRIVE GEAR TYPE Planetary
GEAR REDUCTION RATIO 162:1
FREE SPOOLING Yes
BRAKE TYPE Mechanical Cone
LINE DIAMETER (IN) 3/8 Inch
LINE LENGTH (FT) 80 Feet
LINE MATERIAL Steel
FAIRLEAD TYPE Roller
REMOTE TYPE Wireless
MOUNTING HOLE QUANTITY 4
MOUNTING PATTERN LENGTH (IN) 10 Inch
MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
INCLUDES MOUNTING HARDWARE Yes
COLOR Black
DRUM MATERIAL Aluminum
MAX LINE PULL/ LINE SPEED 10000 Pound/ 5.6 Feet Per Minute
MAX AMP DRAW/ LINE PULL 465 Amp Draw/ 10000 Pound
