Wilwood Adjustable Dual Pedal Brake / Clutch Rev. Swing Mount -6.25:1 Brake 5.1:1 Clutch 340-13836

Wilwood Adjustable Dual Pedal Brake / Clutch Rev. Swing Mount -6.25:1 Brake 5.1:1 Clutch 340-13836

by Wilwood
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU WILW_340-13836
Sold out
$0.00 - $0.00
$275.95
$275.95 - $275.95
$275.95
Availability:
Out of stock
Request a quote

Product Tags: 340-13836 34013836 889545070552 interior-accessories pedals wilw_340-13836 wilwood wilwood-wil-brake-and-clutch-pedals-340-13836

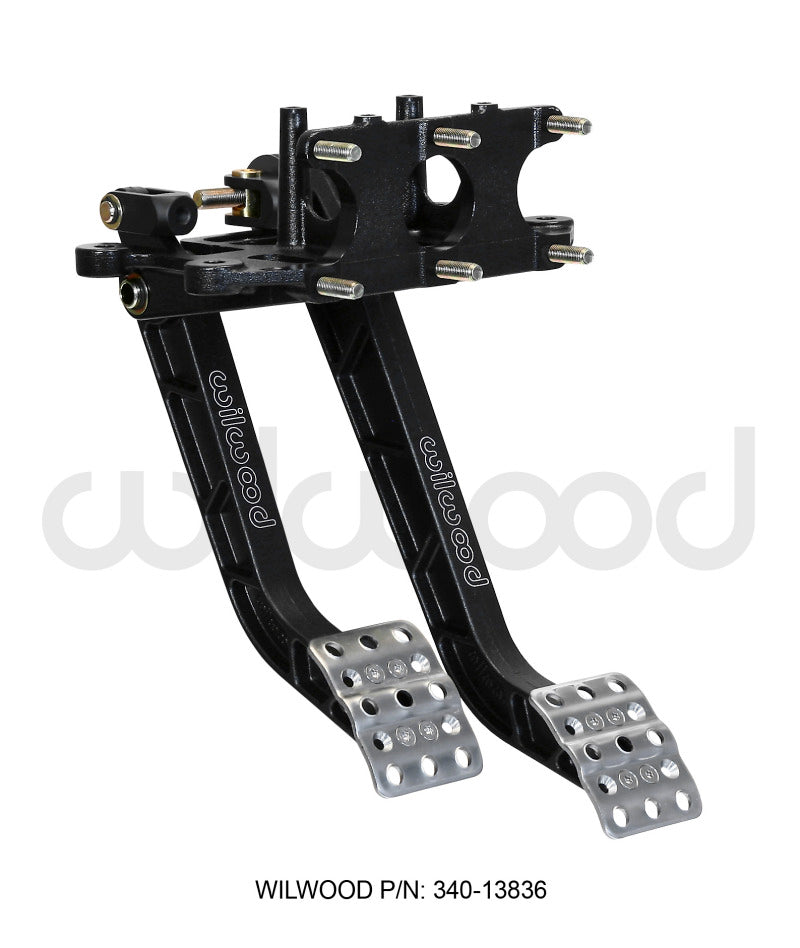

This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms. The brake pedal uses a 6.25:1 ratio arm, but with a shorter 5.1:1 ratio arm on the clutch pedal for additional clearance when necessary. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size. .
