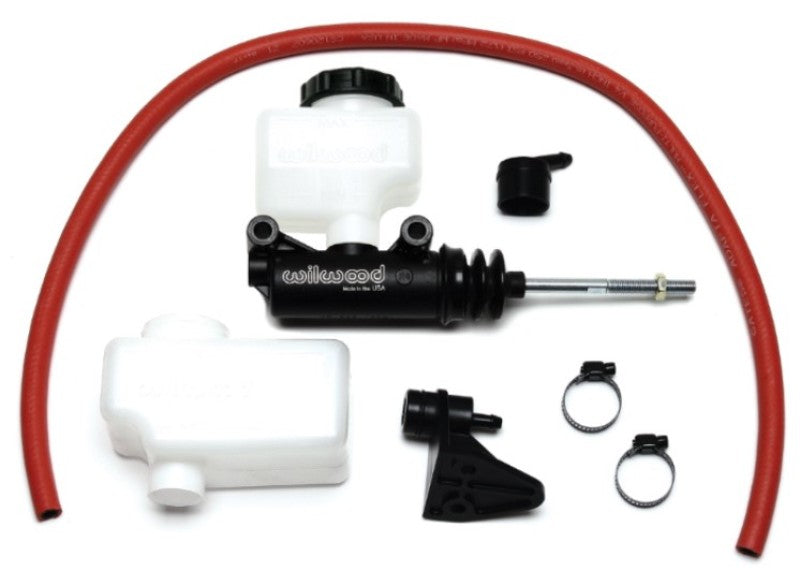

Wilwood Short Remote Side Mount M/C Kit 1in Bore 3/8in-24 Banjo Outlet 260-13625

Wilwood Short Remote Side Mount M/C Kit 1in Bore 3/8in-24 Banjo Outlet 260-13625

by Wilwood
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU WILW_260-13625
Sold out
$0.00 - $0.00
$117.16
$117.16 - $117.16
$117.16
Availability:
Out of stock
Request a quote

Product Tags: 260-13625 26013625 889545067378 brake-master-cylinder brakes rotors-pads wilw_260-13625 wilwood wilwood-wil-master-cylinder-260-13625

This new version of Wilwood's Compact Combination (Side Mount) Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37"compact body provides 2.16" of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00" center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12" of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8" NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
