Zone offroad 6 Inch Lift Kit Ram 1500 (19-24) 4WD Nitro Series

Zone offroad 6 Inch Lift Kit Ram 1500 (19-24) 4WD Nitro Series

by Zone Offroad
Special order – Usually takes 2-3 weeks – Click here for more information!
×

What does the phrase 'Will be special ordered for you' entail?

This indicates that the product is not currently stocked in our warehouse. We procure 'Special Order' items directly from the supplier upon receiving your order. Typically, we do not maintain inventory for these items.

'Special Order' products may either be shipped directly from the supplier or routed through our facilities before reaching you. The available shipping options will be presented during the checkout process.

Once you place an order for a Special Order item, we will specially order it for you, and there is a restocking fee of up to 15% depending on the item in case of cancellations.

As Roco 4x4, we commit to providing updates on your order within a maximum of 2 business days, offering an estimated time of arrival (ETA) for the item. In the event that the item is discontinued, we will promptly notify you.

SKU ZONE_ZOND96LN
Sold out
$0.00 - $0.00
$1,911.56
$1,911.56 - $1,911.56
$1,911.56
Availability:
Out of stock
Request a quote

Product Tags:

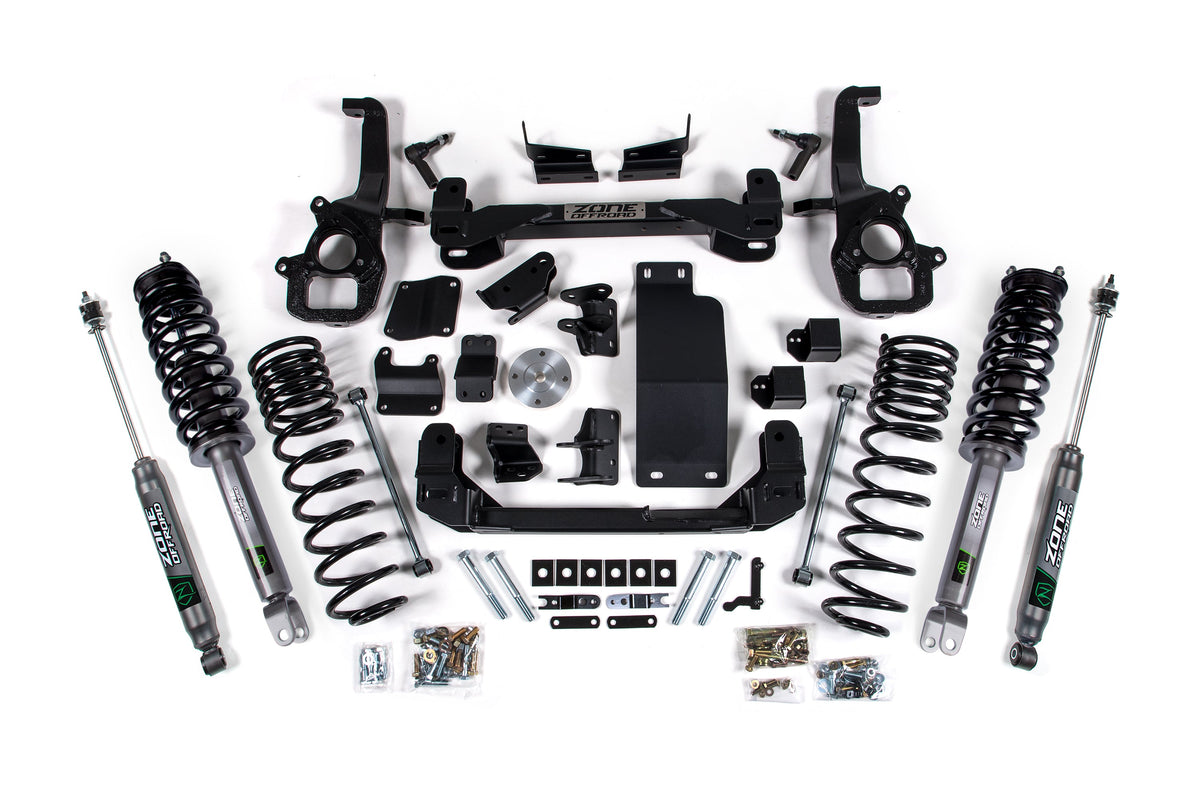

Rear Shock Option:Nitro Series, OE Knuckle Type:Standard, Front Shock Option:Loaded StrutTake your RAM 1500 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and differential relocation brackets to maintain driveline angles. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
  • Corrects suspension, steering, and drive-line geometry for great on-road handling and improved off-road performance.
  • Heavy-duty differential skid slate improves off-road protection.
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
  • Top mount strut and pre-load spacers set ride height and maintain ride quality.
  • 5" rear coil springs maintain ride quality and load capacity.
  1. Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
  2. Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
  3. Vehicles equipped with the Off-Road Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the "Optional Equipment" section there will be a line item that reads "Off-Road Group" if your truck is equipped.
  4. RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
  5. Stock 20s can be reinstalled with factory tire size.
  6. This kit will NOT work on Diesel models.
  7. Does NOT work for models with factory rear airbag suspension.
  8. If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
  9. *IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE.
installation difficulty:Moderatehttps://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/D2642.pdfinstallation time:8 hrs
  • Front Lift Method : Strut Replacement
  • Front Lift Height : 6"
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 5"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"
