WARN Zeon 12-S WINCH 95950
WARN

WARN Zeon 12-S WINCH 95950

SKU: BCSQ_95950
$1,751.25
Check Fitment
Select your vehicle to confirm this part fits
Select Vehicle
○ Notify Me When Back
Free US ShippingAll US orders
30-Day ReturnsHassle-free
WarrantyLifetime tech support
Description

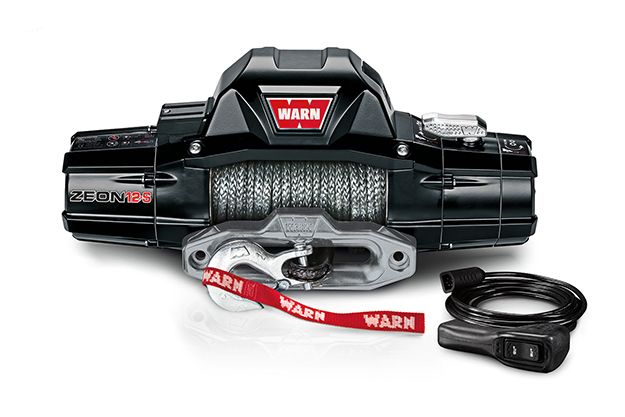

This Warn Industries ZEON (R) 12-S 12 volts electric Winch is vehicle mounted and has a pull capacity of 12,000 pounds. It has an 80 feet Spydura synthetic rope. Note: This Winch will require a winch mount for proper installation.

Video
Overview

The WARN ZEONu00ae has proven itself in the field and among off-roaders. Now you can get the 12,000 Pounds capacity ZEON winch with Spydurau00ae Pro synthetic rope. The new ZEON 12-S winch trims weight but keeps plenty of muscle for the big jobs and the toughest rescues. And the light, easy-to-handle synthetic rope makes any winching situation a bit easier. It's the perfect choice for heavily-loaded off-road vehicles.

  • Legendary WARN reliability and performance; 12,000 lb. (5443 kg) capacity - perfect for the bigger vehicles.
  • Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong.
  • New-design planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
  • Flat black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
  • Aluminum winch drum reduces rope wear, is lightweight, and has an integrated rope anchor for easy rope installation.
  • The robust aluminum structure is durable and helps dissipate heat.
  • Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
  • Contactor control for extreme reliability and weather resistance.
  • Automatic mechanical cone brake holds the full rated load and offers excellent control while winching.
  • Ultra-durable metal-reinforced rubberized corded remote with 12' lead.
  • Includes 80' of 3/8" Spydura Pro synthetic rope and aluminum hawse failead with powder-coat finish.
  • Proprietary and strongest-in-class Spydura Pro synthetic rope is found on many military vehicles. This rope features a urethane-coated 12-strand braid, heat treated under tension. A 20 ft. Nomexu2122 heat sleeve protects the rope on the layer nearest the drum.
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Specs
TYPE Electric
MOUNT TYPE Vehicle Mounted
RECOMMENDED USE Vehicle Recovery
VOLTAGE 12 Volt
ELECTRICAL CONTROL TYPE Solenoid
MOTOR TYPE Series Wound
THERMAL SHUTOFF No
DRIVE GEAR TYPE Planetary
GEAR REDUCTION RATIO 216:1
FREE SPOOLING Yes
BRAKE TYPE Mechanical Cone
LINE DIAMETER (IN) 3/8 Inch
LINE LENGTH (FT) 80 Feet
LINE MATERIAL Synthetic
FAIRLEAD TYPE Hawse
REMOTE TYPE 12 Feet Lead
OPERATION TYPE Automatic
MOUNTING PATTERN LENGTH (IN) 10 Inch
MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
COLOR Black
DRUM MATERIAL Aluminum
MAX AMP DRAW/ LINE PULL 469 Amp Draw/ 12000 Pound
MAX LINE PULL/ LINE SPEED 12000 Pound/ 3.3 Feet Per Minute
